Outdoor weekly digital timer 3600 W – IP44

Switches electrical equipment on and off on the days and at the times of the week you set

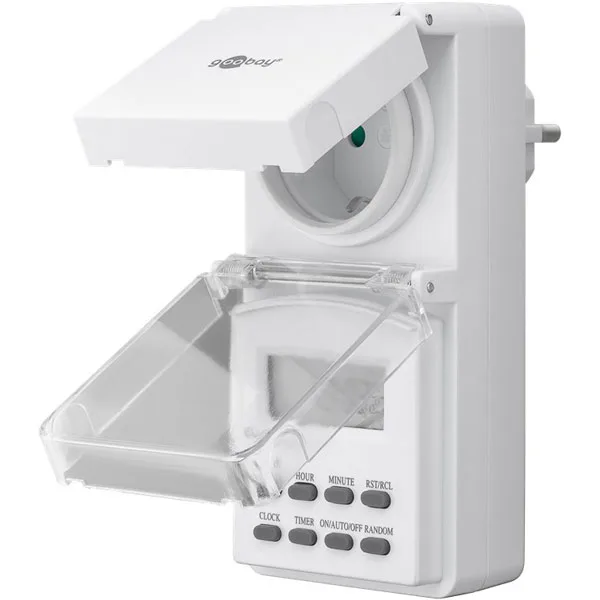

Outdoor weekly digital timer 3600 W - IP44 - Image 1

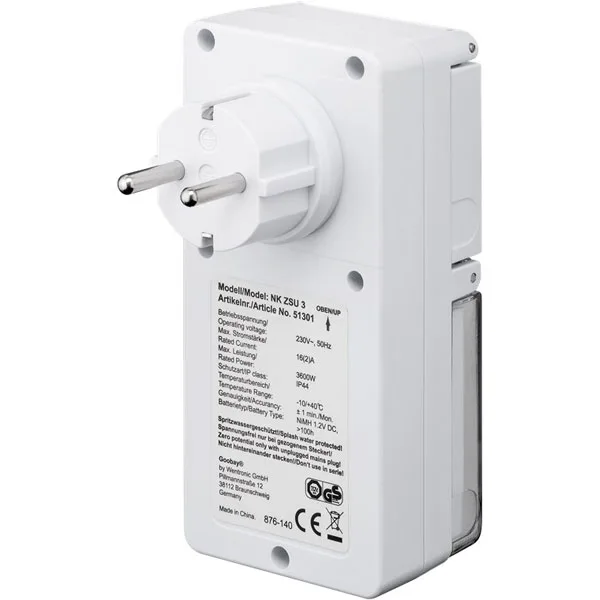

Outdoor weekly digital timer 3600 W - IP44 - Image 3
Outdoor weekly digital timer 3600 W - IP44 - Image 4
Outdoor weekly digital timer 3600 W - IP44 - Image 5
Outdoor weekly digital timer 3600 W - IP44 - Image 6

SKU 8228-WT51301EAN 4040849513015Item type: Assembled

Description

Switches electrical equipment on and off on the days and at the times of the week you set. It offers 10 operating programs for each day of the week with 1 minute setting steps, 16 different daily combinations, an On/Off button, a backup battery, 12/24 hour time format, automatic daylight saving adjustment and a SCHUKO socket. Suitable for outdoor use (IP44).

The pack contains the digital timer and the instructions.
Technical specifications
  • Backup battery: Yes, built in. It keeps the settings in memory for about 4 days if the mains supply fails.

Technical details

Power supply 230 Vac/50 Hz
Maximum switchable load 3600 W / 16 A
Operating programs 10 for each day of the week
Backup battery Yes, built in
Protection rating IP44
Operating temperature from -10°C to +40°C
Dimensions (mm) 138x75x64
Weight 240 grams
