Panel-Mount Step-Down Power Supply Module 0-50V – 0-5A

This programmable module lets you set a constant output voltage or current, pairing analogue integration with digital controls

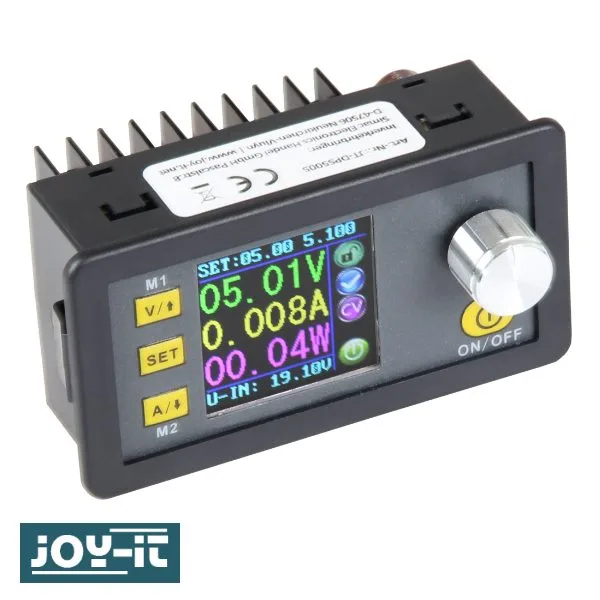

Panel-Mount Step-Down Power Supply Module 0-50V - 0-5A - Image 1

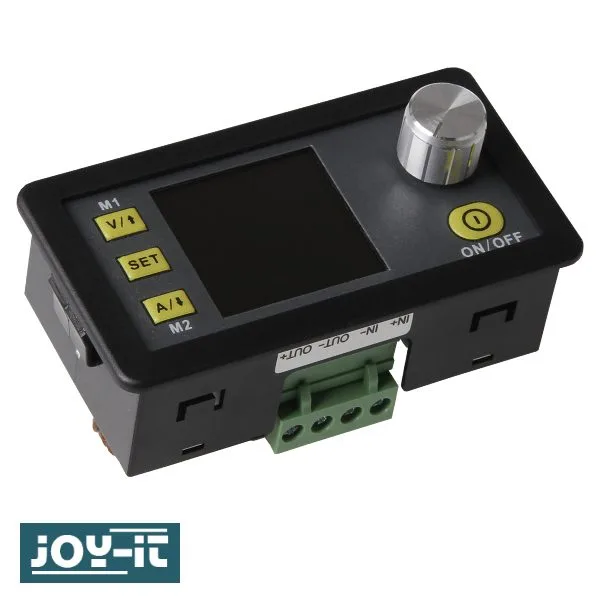

Panel-Mount Step-Down Power Supply Module 0-50V - 0-5A - Image 3

SKU 2860-JT-DPS5005EAN 4250236819389Output voltage: Manually adjustableItem type: AssembledConversion type: Step-down

Description

This programmable module lets you set a constant output voltage or current, pairing analogue integration with digital controls. It has an internal memory and a 3.6 cm (1.44 ”) colour OLED display to show readings and functions. Every setting is entered with three buttons, a rotary knob and a power button.

Manual in English

Technical details

Input voltage 6 - 55 V (DC)
Output voltage 0 - 50V (DC)
Output current 0 - 5A
Output power 0 - 250W
Voltage resolution 0.01 V
Current resolution 0.01 A
Ripple 100mV(pp) at full load
Display size 1.44"
Panel cut-out size 39 x 71 mm
Module size 42 x 45 x 80 mm
Weight 88 g
