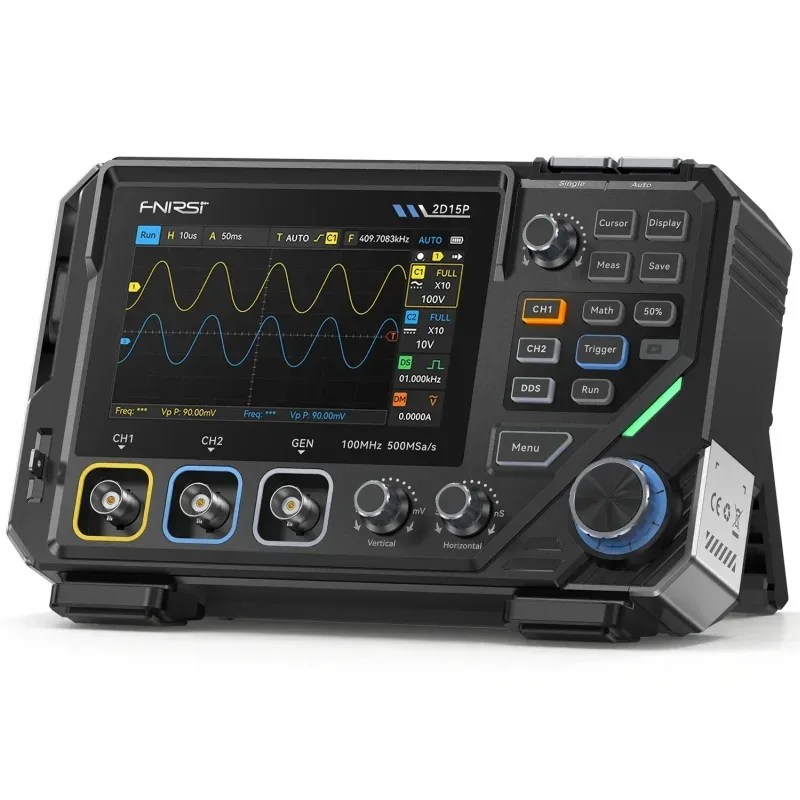

Professional 3-in-1 MultiScope: 100 MHz Oscilloscope, 19,999-count Multimeter, 10 MHz Generator

Description

The DSO2D15P is a powerful, integrated answer for electronics professionals, engineers, designers and technicians who need a versatile, complete bench instrument. In a single unit this device packs a two-channel digital oscilloscope, a high-resolution multimeter and a signal generator, offering a test and measurement platform able to cover a wide range of applications, from research and development to maintenance and final testing.

Two-channel Oscilloscope

The heart of the DSO2D15P is the oscilloscope: with a bandwidth of 100 MHz in single channel mode (50 MHz when both channels are active) and a sampling rate of up to 500 MSa/s, it is built to capture complex signals with high accuracy. The selectable memory depth (10K / 100K / 1M points) lets you record long waveforms, while the 128-level grayscale or “color temperature” display lets you watch the time dynamics and the persistence of the signal. Auto, Normal and Single trigger modes, XY mode, the maths operators (Add, Subtract, Multiply, Divide) and the cursor function make the instrument extremely flexible. Thanks to infinite persistence you can analyse overlaps, jitter or intermittent signals that often escape simpler systems.

True RMS Multimeter

As well as the oscilloscope, the DSO2D15P has a high-resolution multimeter (19,999 counts) measuring DC/AC voltage, DC/AC current, resistance, capacitance, continuity, diodes and temperature (with probe). This gives you an accurate, steady numeric reading, useful for quick checks or as a complement to the visual analysis on the oscilloscope. The True RMS function makes sure that waveforms which are not perfectly sinusoidal are measured correctly.

Built-in Signal Generator

To round out the test toolset, the DSO2D15P includes a DDS generator producing signals up to 10 MHz with adjustable amplitude (0.1 – 3.0 Vpp) and 0-100 % duty cycle. Several standard waveforms are available (sine, square, sawtooth, step, half wave, full wave), which allows circuit testing, signal simulation, checking of analogue or digital modules, switching power supplies and logic compatibility.

Interface and Usability

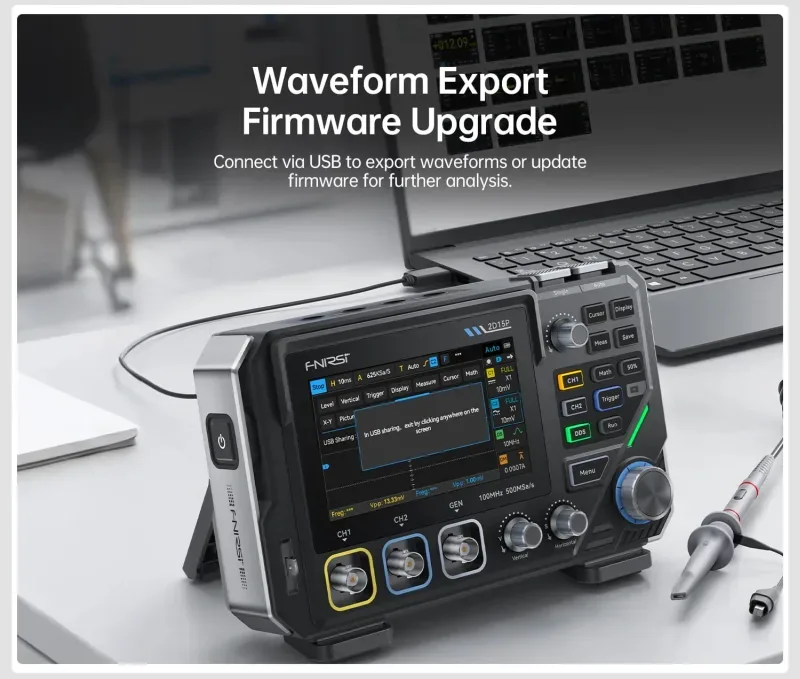

The device has a 4.3″ capacitive touchscreen display combined with physical buttons, for a smooth and intuitive experience. The rotary knob and the front panel layout give quick access to every function. The build suits a laboratory bench as well as a teaching or design environment. Waveform saving and USB-C export let you store profiles or analyse the data later on a PC.

Power and Design

The DSO2D15P is powered by a 5000 mAh Li-ion battery charged over USB Type-C, which makes it portable outside the laboratory too and useful for field work or demonstrations. The compact design, the intuitive interface and the solid build make it suitable for continuous use.

Areas of Use

The DSO2D15P is perfect for: testing and debugging analogue and digital prototypes, advanced technical training, industrial maintenance, electronic board repair, power supply analysis, switching signal checks, microcontroller circuit measurements, quality control, academic laboratories and demanding hobbyists who want professional bench performance.

The DSO2D15P is an all-in-one instrument that removes the need to buy an oscilloscope, a multimeter and a signal generator separately. Thanks to its high performance and its complete interface, it is a reliable companion for anyone working with electronics at professional or semi-professional level.

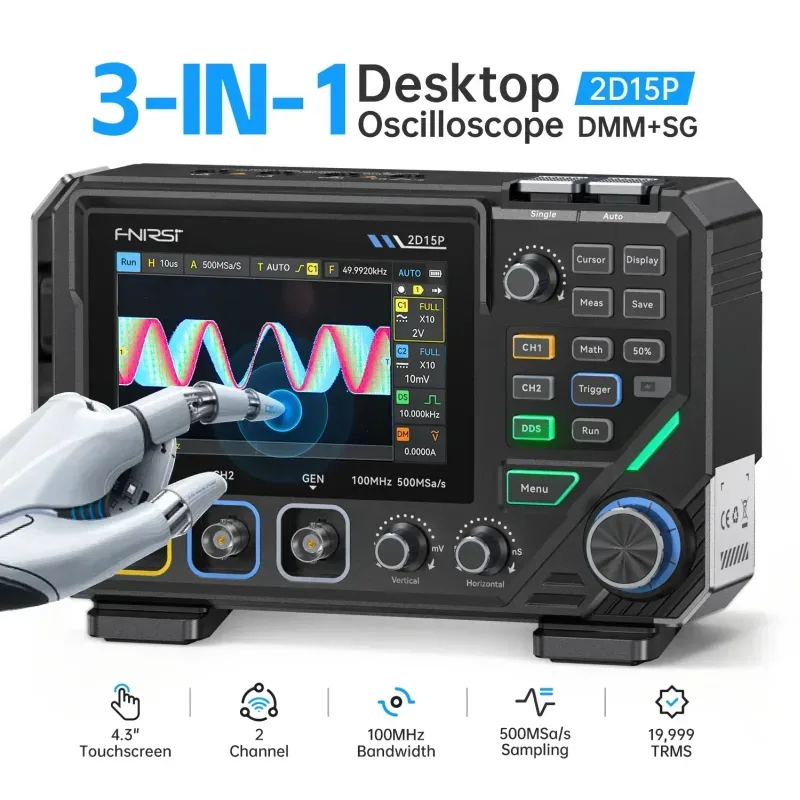

Professional 3-in-1 Measuring Instrument with Touch Display

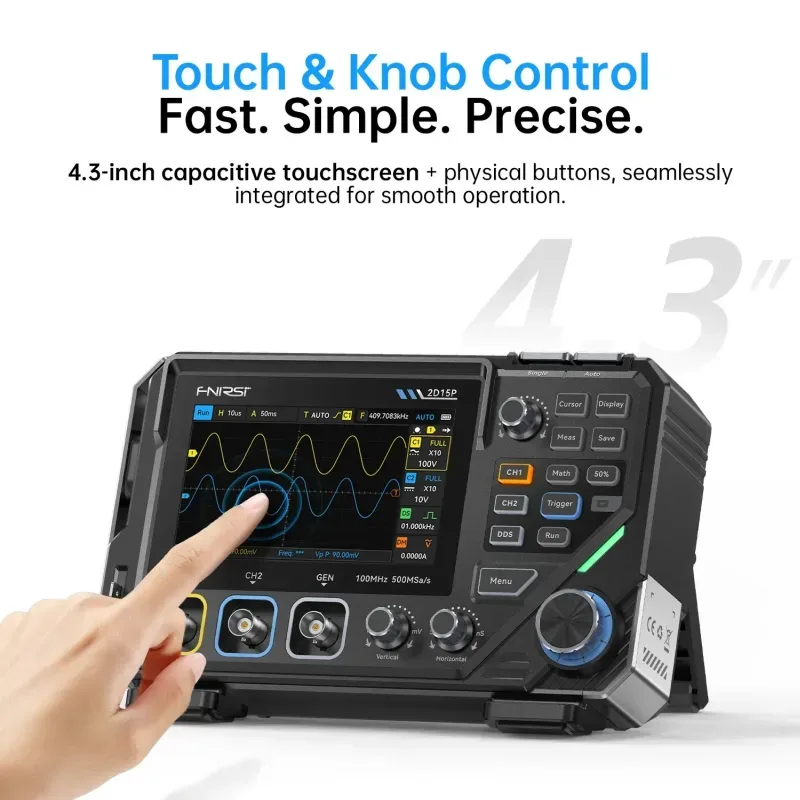

Capacitive Touchscreen and Knobs for Fast, Accurate Analysis

A 4.3″ capacitive touchscreen paired with dedicated buttons and knobs for smooth, precise and immediate control of the waveforms.
This combination gives a fast, professional experience that fits every measuring scenario.

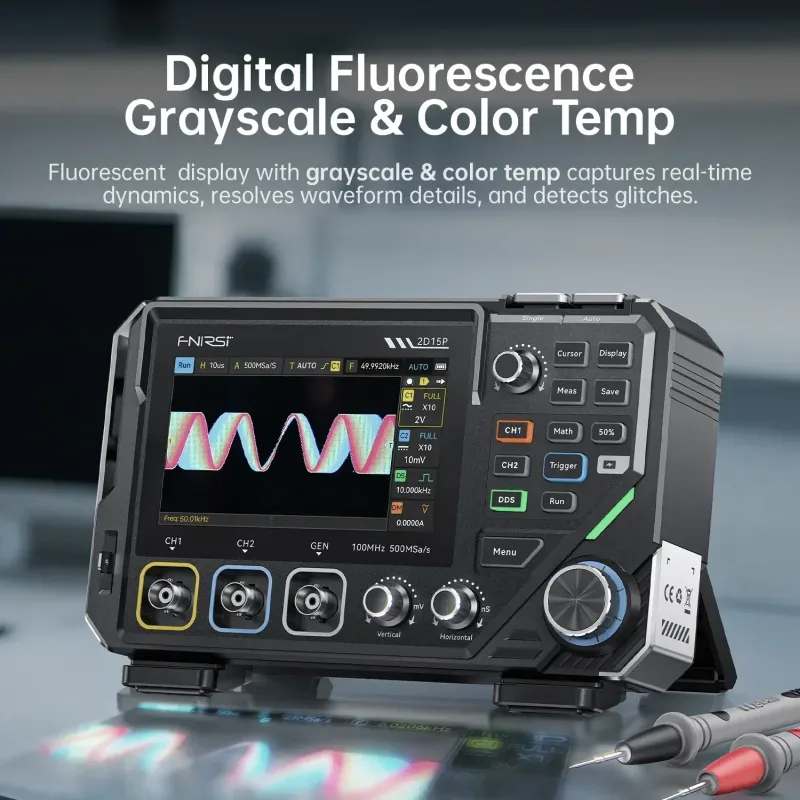

Digital Fluorescence Technology for Waveform Detail and Glitch Detection

The fluorescent display system, with adjustable grayscale and colour temperature, clearly brings out waveform dynamics, improves the readability of fine detail and identifies in real time glitches and anomalies that are hard to catch on traditional displays.
Perfect for advanced electronic analysis and complex signal diagnostics.

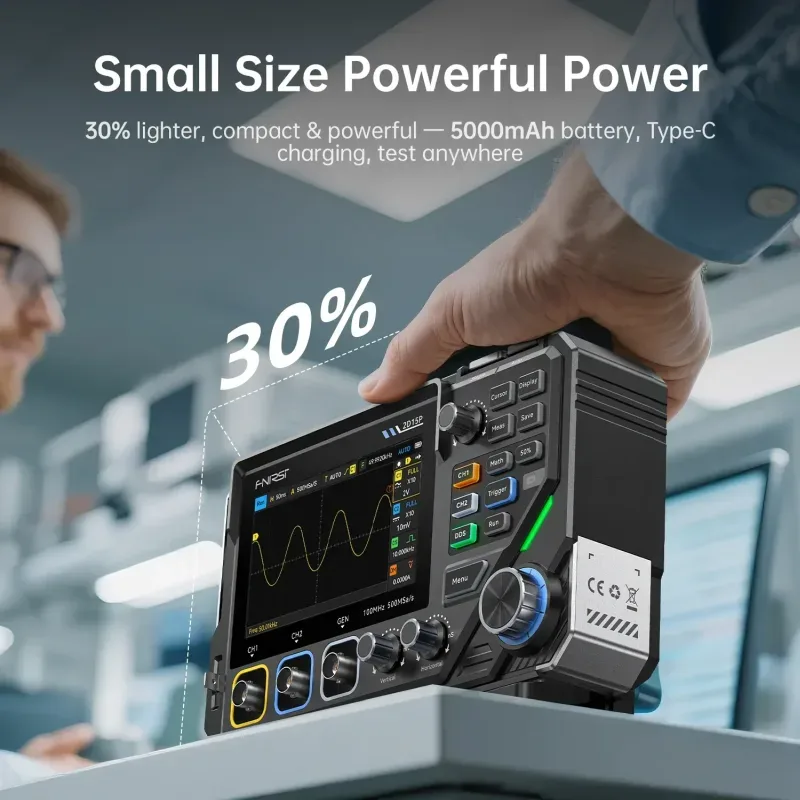

Pocket-sized Power with Extended Runtime and Type-C Charging

Thanks to a design 30% more compact, the DSO2D15P combines great portability with power: the built-in 5000mAh battery and Type-C charging let you measure and analyse away from the workbench too, without giving up the accuracy and the advanced functions of a professional instrument.

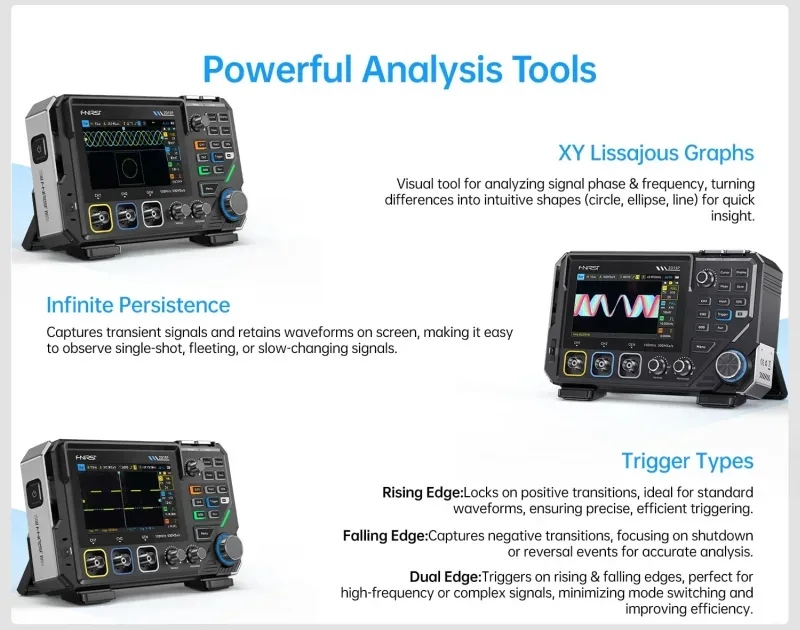

Professional Functions: XY Plots, Infinite Persistence and Advanced Triggers

The DSO2D15P carries advanced analysis tools that make even the most complex signals easier to read.
The XY Lissajous plots let you judge phase and frequency through intuitive shapes, while infinite persistence helps to capture transient or fleeting events.
The advanced triggers — rising, falling and dual edge — ensure accurate waveform synchronisation, keeping the analysis fast and reliable even with dynamic or high-frequency signals.

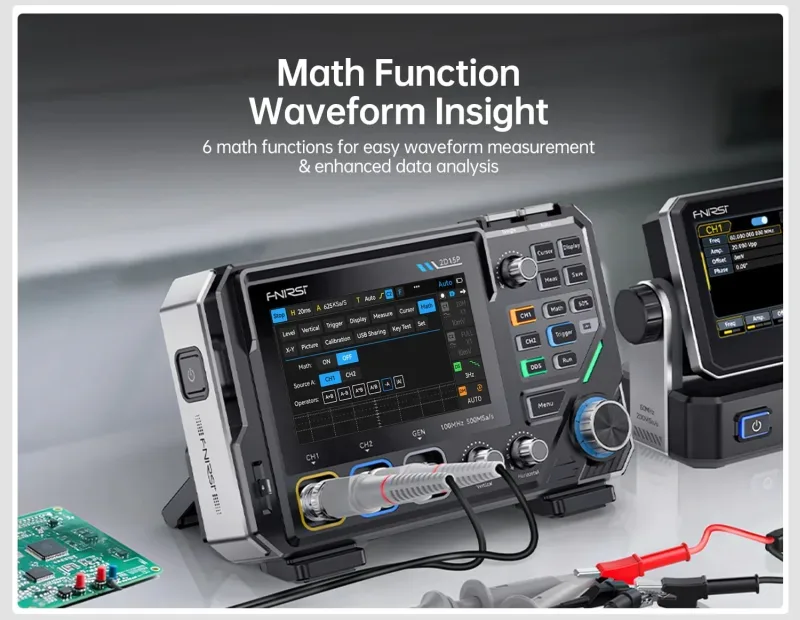

Advanced Maths Functions for Waveform Analysis

The DSO2D15P carries six maths functions that let you analyse waveforms more deeply and more directly.
Addition, subtraction, multiplication, division, FFT and other operations bring out correlations, distortion and variations that are hard to see by eye.
An ideal system for technicians, makers and professionals who need fast, detailed diagnostics right on the instrument screen.

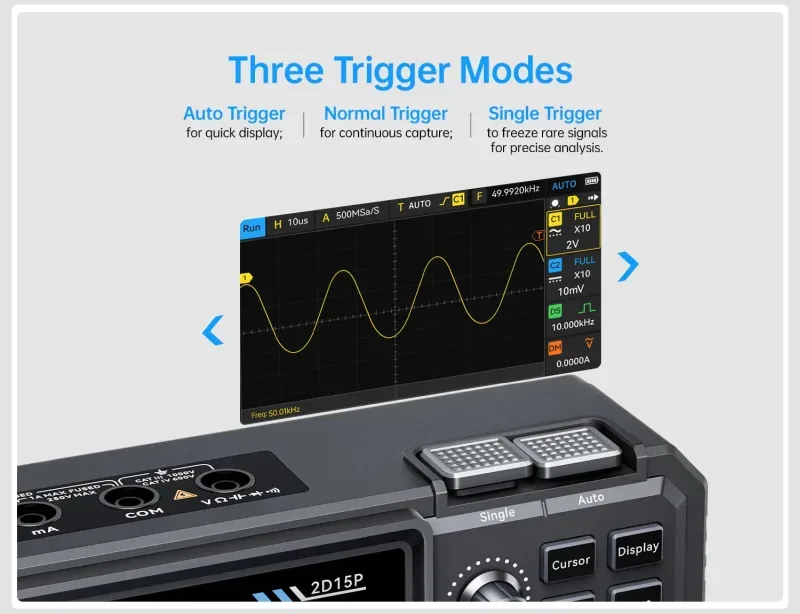

Oscilloscope with Three Trigger Modes: Auto, Normal and Single

The DSO2D15P offers three trigger modes — Auto, Normal and Single — that let you capture, display and freeze even the most complex or rare signals.
This gives complete control over waveform acquisition, ideal both for quick debugging and for high-precision professional analysis.

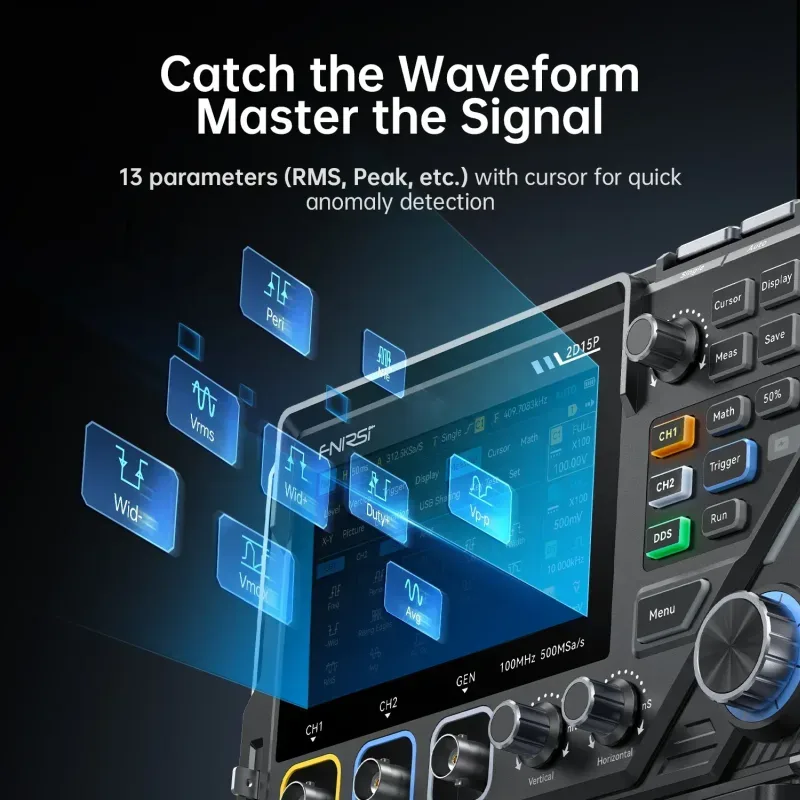

Professional Waveform Analysis with RMS, Peak and Duty Cycle Parameters

The DSO2D15P lets you analyse every signal in depth thanks to 13 automatic parameters, among them RMS, Peak, Duty Cycle and Period.
The built-in cursors quickly pinpoint anomalies and the smallest variations in the waveform, keeping the analysis precise and immediate in professional settings too.

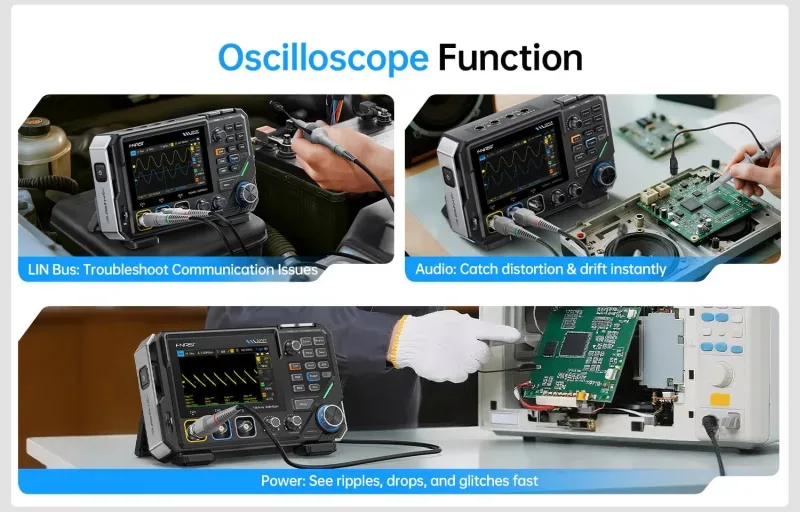

Signal Analysis in Automotive, Audio and Power

The DSO2D15P analyses signals from LIN Bus systems, audio circuits and power supplies accurately.
It quickly spots distortion, voltage drops, ripple and communication problems, which makes it a versatile tool for automotive work, consumer electronics and professional repairs.

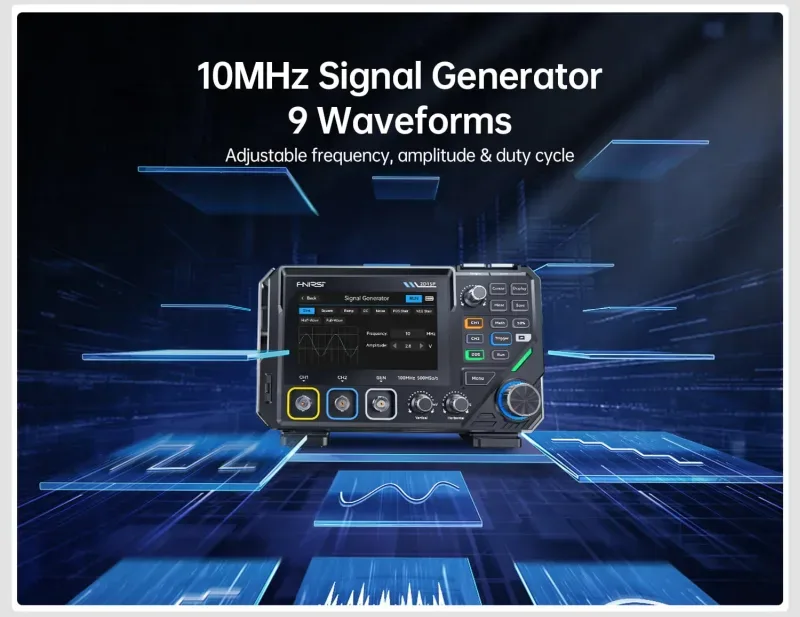

10 MHz Signal Generator with 9 Waveforms

The DSO2D15P carries a powerful 10 MHz signal generator with 9 selectable waveforms, giving full control over frequency, amplitude and duty cycle.
Ideal for testing circuits, electronic modules and communication systems, it offers professional versatility right inside the 3-in-1 instrument.

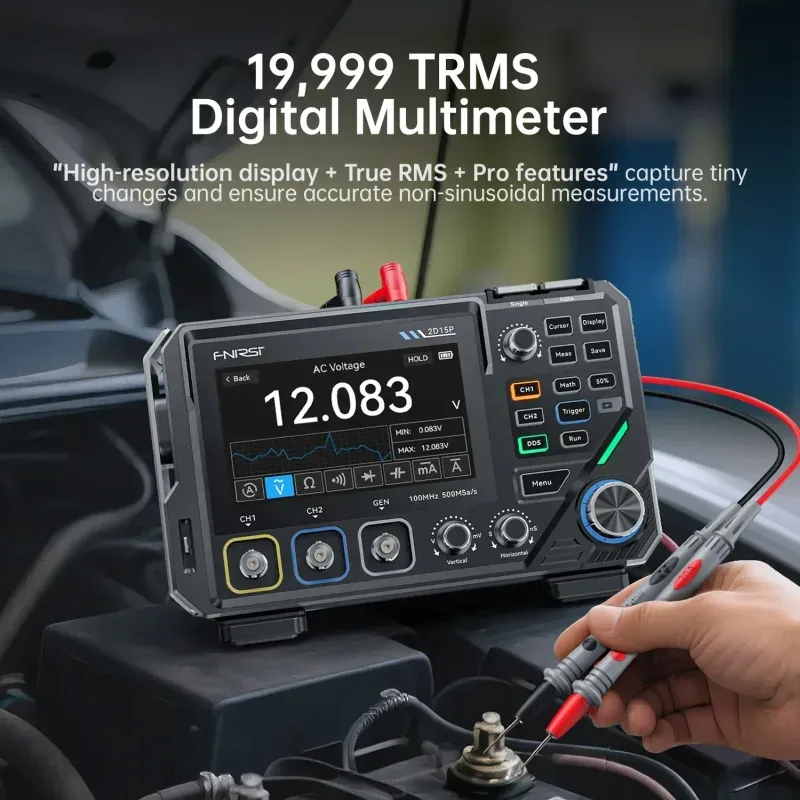

19,999-count TRMS Digital Multimeter for High-Precision Measurements

The DSO2D15P delivers extremely precise measurements thanks to the 19,999-count digital multimeter with True RMS technology, ideal for distorted and non-sinusoidal signals.
The high-resolution display brings out the smallest changes in voltage and current, for fast, reliable diagnosis in automotive and industrial work too.

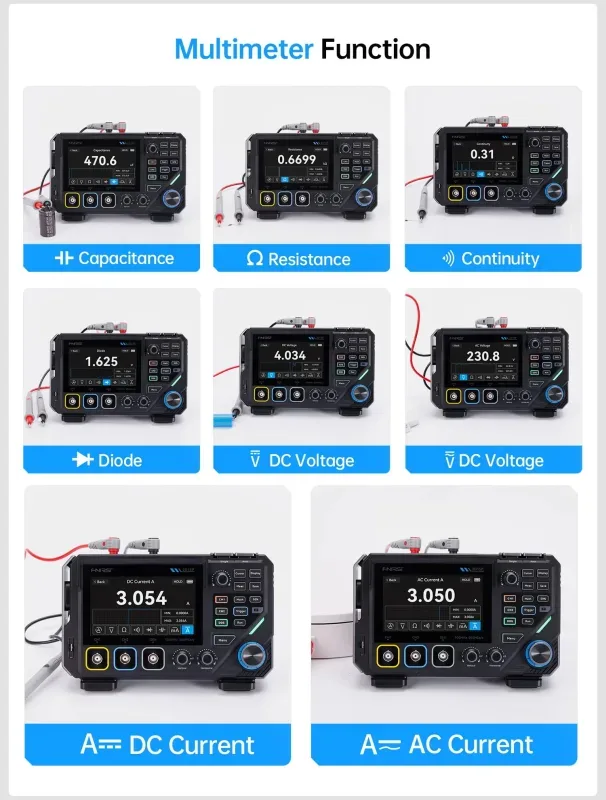

Professional Electrical Measurements with Advanced Multimeter Functions

The DSO2D15P carries a 19,999-count TRMS digital multimeter able to measure resistance, capacitance, continuity, diodes, AC/DC voltages and AC/DC currents accurately.
Every function is shown on the large colour display, for crisp, immediate readings and professional diagnosis on electronic circuits and electrical installations.

3-in-1 Oscilloscope for Engineers, Technicians and Research: Maximum Versatility

The DSO2D15P is designed to fit every technical setting: electronics development in the laboratory, equipment maintenance, research work and field testing.
Its versatility makes it ideal for engineers, technicians, trainers and professionals who need reliable measurements in any operating scenario.

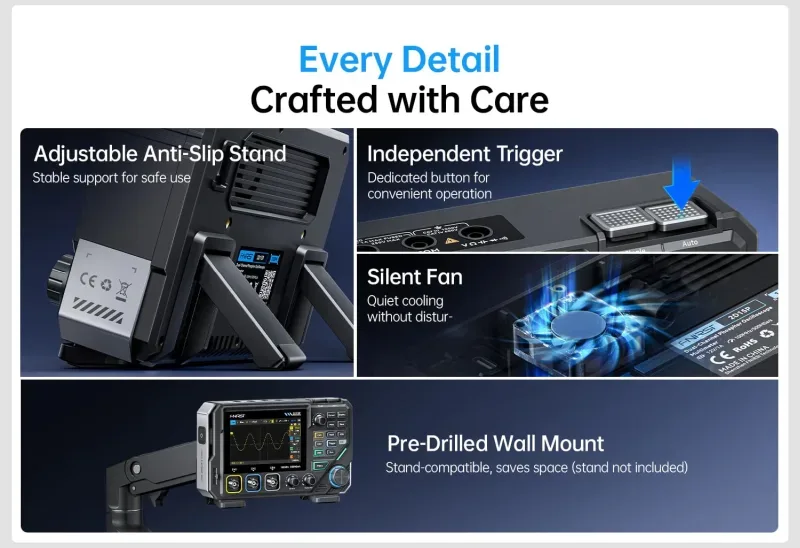

Smart Design: Non-slip Stand, Independent Trigger and Quiet Fan

Adjustable non-slip stand, independent trigger button, quiet fan and pre-drilled mounting points: every detail of the DSO2D15P is designed to offer convenience, stability and a faultless experience in any working environment.

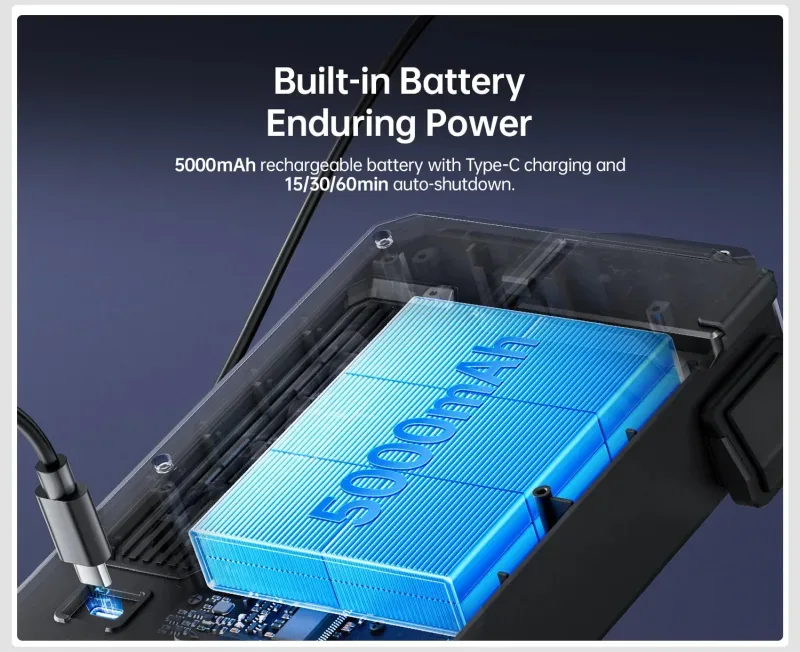

Built-in 5000mAh Battery: Extended, Reliable Runtime

The built-in 5000mAh battery gives long runtime and lets you work without interruptions.
Type-C charging and the selectable auto power-off (15/30/60 minutes) optimise consumption and efficiency, keeping the DSO2D15P always ready to use.
