Programmable Digital Timer for DIN Rail

Digital timer with LCD display for DIN rail mounting

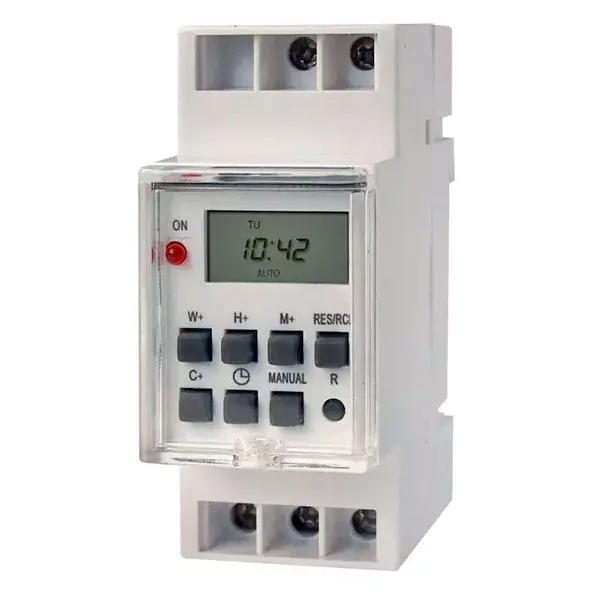

Programmable Digital Timer for DIN Rail - Image 1
Programmable Digital Timer for DIN Rail - Image 3
Programmable Digital Timer for DIN Rail - Image 4
Programmable Digital Timer for DIN Rail - Image 5

SKU 8240-TP238EAN 8595563718360Item type: Assembled

Description

Digital timer with LCD display for DIN rail mounting. Ideal for switching the power to all kinds of electrical equipment on or off for the length of time you want and at set times, either daily or weekly. Max load 3680 watt 16 A, power supply 230 VAC.

The pack contains the digital timer and instructions.
Technical specifications
  • Battery to back up the memory during a power cut: NI-MH rechargeable battery 1.2 V, 40 mAh>100 hours
  • Size (mm): 85×45(60)x35 (HxDxW)

Technical details

Power supply 230 VAC 50 Hz
Maximum load 3680 W 16 A
Maximum inductive load 4 A
Programmes 8 on/off programmes with 1-minute steps
Clock mode 12/24 selectable
Daily programme 7-day programming
Mounting method DIN rail mounting (takes up 2 DIB modules)
Accuracy +/- 1 minute a month
Reset function Yes
Real-time display Yes
Daylight saving function Yes (manual)
Manual or automatic control Yes
Working temperature -10°C to +50°C
Protection rating IP20
