Programmable Laboratory Power Supply 0-30 V / 5 A
Programmable bench power supply with output voltage adjustable from 0 to 30 Vdc and 5 A maximum current
SKU 8220-LABPS3005DEAN 5410329679835Output voltage: Manually adjustableBench power supplies
Description

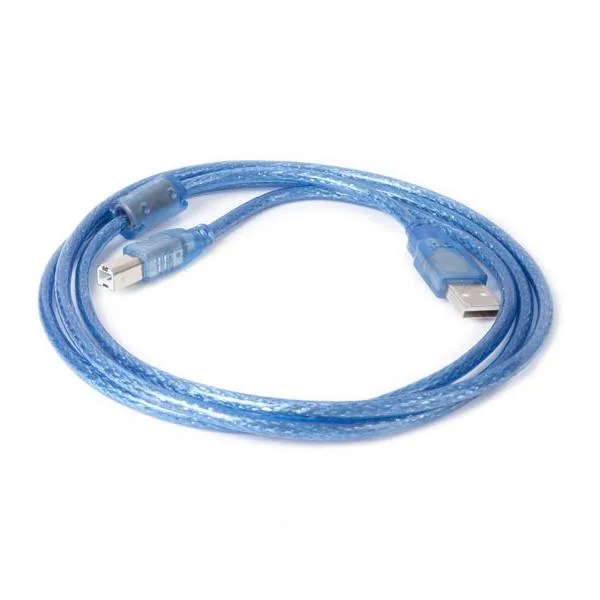

Programmable laboratory power supply, with adjustable output voltage from 0 to 30 Vdc and maximum current of 5 A. It can be connected to a PC via USB port and the included connection cable, controlled through the related software. Equipped with a dual LED display to show voltage and current, it features 3 programmable memories, current and voltage limiting, and a low-noise cooling fan controlled by temperature. Color: white-gray. Software included for Windows XP, Vista, W7, W8, W8.1, W10 (32-bit + 64-bit).
Technical details
| Power supply | 220 Vac - 50 Hz |
|---|---|
| Output voltage | from 0 to 30 Vdc adjustable |
| Output current | from 0 to 5 A adjustable |
| Ripple voltage | =< 1 mV |
| Ripple current | 3 mA |
| Dimensions (mm) | 115 x 190 x 240 |
| Weight | 5.3 kg |
