Reed switch module with LM393

Compact module based on the LM393 chip, fitted with a reed contact (single normally open contact), a sensitivity adjustment trimmer and status LEDs for power and output signal

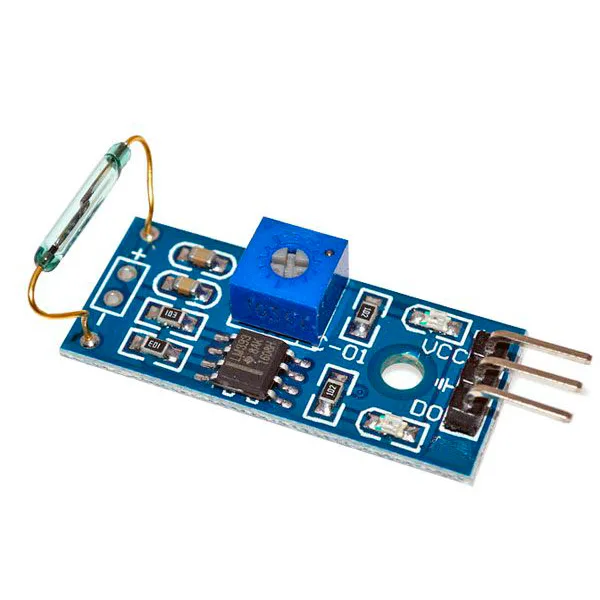

Reed switch module with LM393 - Image 1

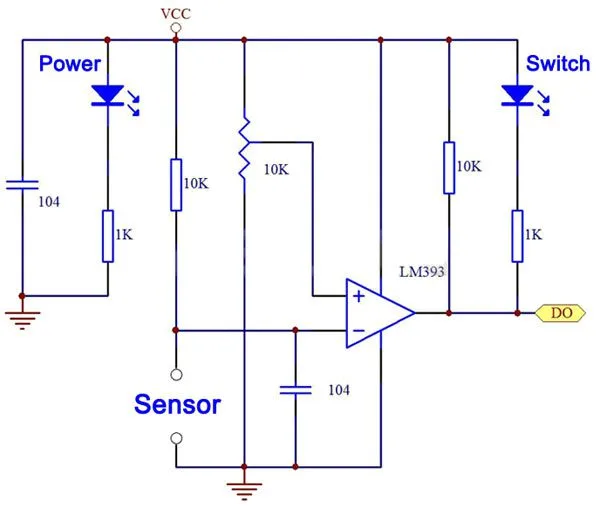

Reed switch module with LM393 - Image 3

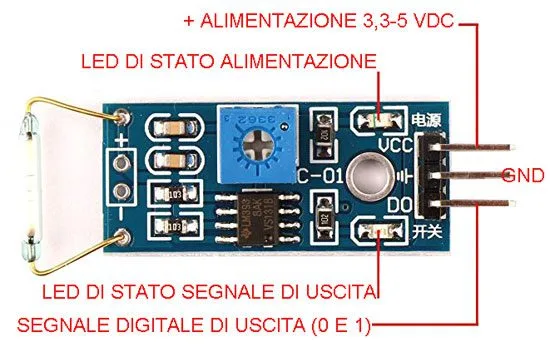

Reed switch module with LM393 - Image 4

SKU 3085-REEDMODEAN 8219671102940Item type: Assembled

Description

Small module based on the LM393 chip and equipped with a Reed contact (single normally open contact), trimmer for sensitivity adjustment, status LED for power and output signal. It provides a digital output signal depending on whether the Reed contact is closed or open. Simply bring a magnet within a maximum distance of 1.5 cm to close the contact. It can be used with Arduino, Fishino, or other microcontrollers.
