Regulated power supply, 1.5 to 35 V

This compact power supply provides a regulated output voltage adjustable between 1.5 and 35 V with a current of 1 A

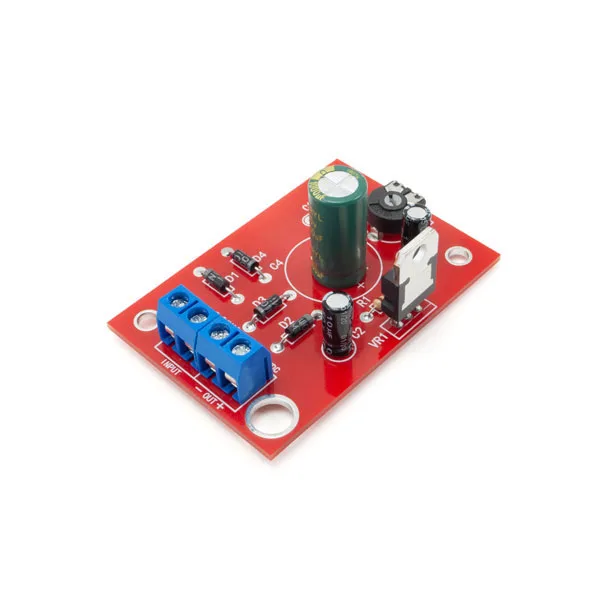

Regulated power supply, 1.5 to 35 V - Image 1

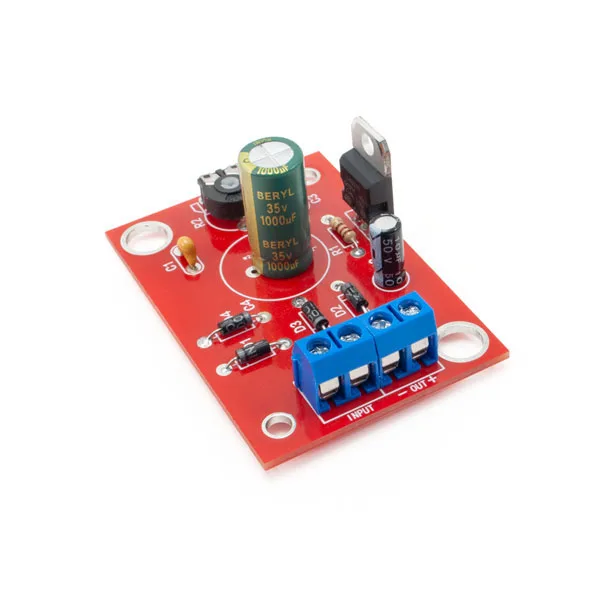

Regulated power supply, 1.5 to 35 V - Image 3

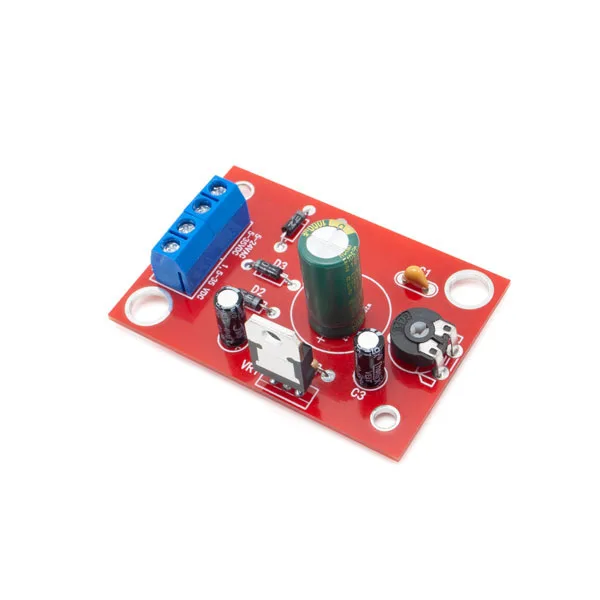

Regulated power supply, 1.5 to 35 V - Image 4

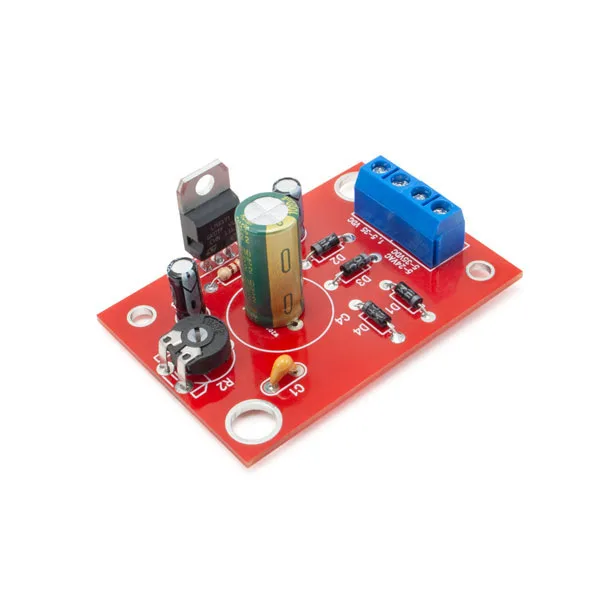

Regulated power supply, 1.5 to 35 V - Image 5

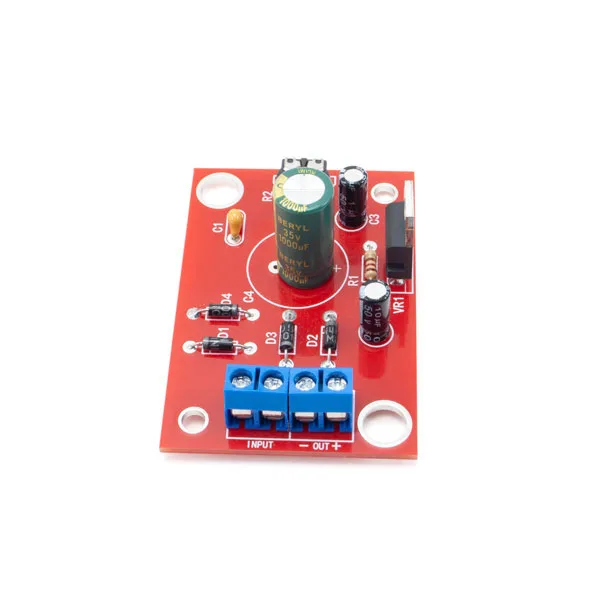

Regulated power supply, 1.5 to 35 V - Image 6

SKU 7100-FK003EAN 8219671120296Output voltage: Manually adjustableItem type: Assembled, KitConversion type: Step-down,

Description

This compact power supply provides a regulated output voltage adjustable between 1.5 and 35 V with a current of 1 A.
The LM317 regulator used in this kit has residual ripple and regulation figures that are far better than those of conventional regulators. Current limiting and thermal protection circuits are built into the chip. Supplied without heatsink.
Technical specifications and circuit diagram


Technical details

Input voltage max. 24 VAC / 35 VDC
Output voltage 1.5 to 35 volt (adjustable with the trimmer)
Output current 1A max
Max. dissipation 15 W (with heatsink)
PCB dimensions (mm) 60.6x41.5x1.6
