Regulated power supply from 1.5 to 35 volt – 1 A

Power supply with a regulated output voltage adjustable between 1.5 and 35 V and a maximum current of 1 A

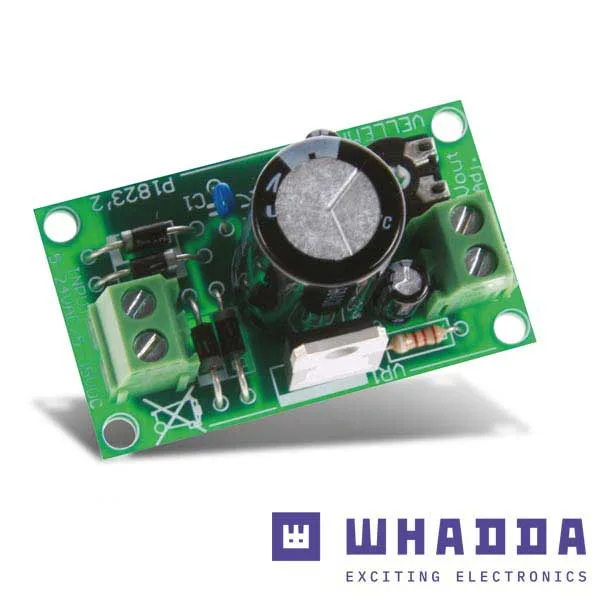

Regulated power supply from 1.5 to 35 volt - 1 A - Image 1

SKU 8220-WSPC1823EAN 5410329018238Output voltage: Manually adjustableItem type: KitConversion type: Step-down

Description

Compact stabilized power supply, just 52x30mm, based on the LM317 voltage regulator. Easy to build, it can provide a stabilized output voltage adjustable between 1.5 and 35 V with a maximum current of 1 A. Current limiting and thermal protection circuits are included in the chip.

Technical details

Input voltage max. 24 VAC / 35 VDC
Output voltage from 1.5 to 35 volts (adjustable via trimmer)
Output current 1A max
Max. dissipation 15 W
PCB dimensions (mm) 52x30
