Regulated Power Supply Kit – 3 to 30 Vdc, 3 A

This kit builds a power supply, for auxiliary or permanent use, suitable for every Whadda kit that needs regulated DC voltages between 3 and 30 Vdc and currents below 3 A

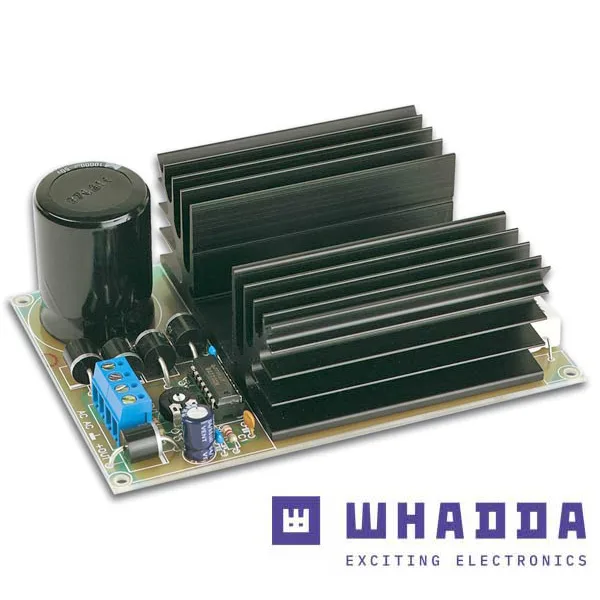

Regulated Power Supply Kit - 3 to 30 Vdc, 3 A - Image 1

SKU 8220-WSPC7203EAN 5410329072032Output voltage: Manually adjustableItem type: KitConversion type: Step-down

Description

This kit is meant as an auxiliary or permanent power supply unit for all the common Whadda kits based on a regulated DC voltage between 3 and 30V, provided the draw does not exceed 3A. Of course, this power supply unit can be used for other purposes as well. By replacing the trimmer with a potentiometer it can even be used as an adjustable power supply unit. Supplied with a heat sink.

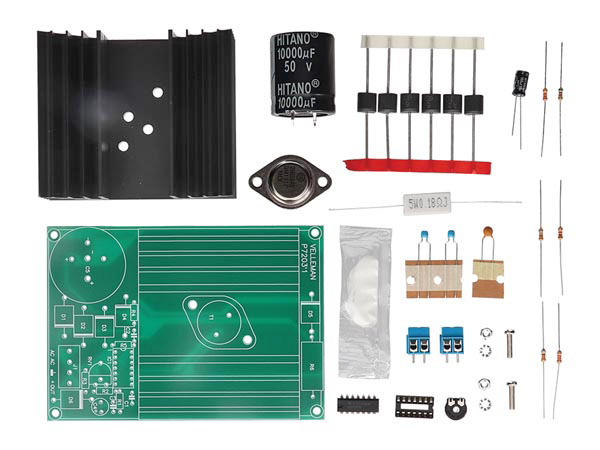

Whadda Regulated Power Supply Kit - Adjustable voltage 3-30V, 3A
Technical specifications
  • Compatibility: compatible with all the common Whadda kits
  • Other applications: can be used for other purposes
  • Extra features: adjustable by replacing the trimmer with a potentiometer

Technical details

Input voltage 3-30VAC (alternating)
Output voltage 3-30VDC (direct)
Maximum output current 3A
Mode of use auxiliary or permanent
Accessories included heat sink
Residual ripple 0.5 mV
Overload protection Yes
Dimensions 6.50 × 25.50 × 17.00 cm
Weight 505 grams
