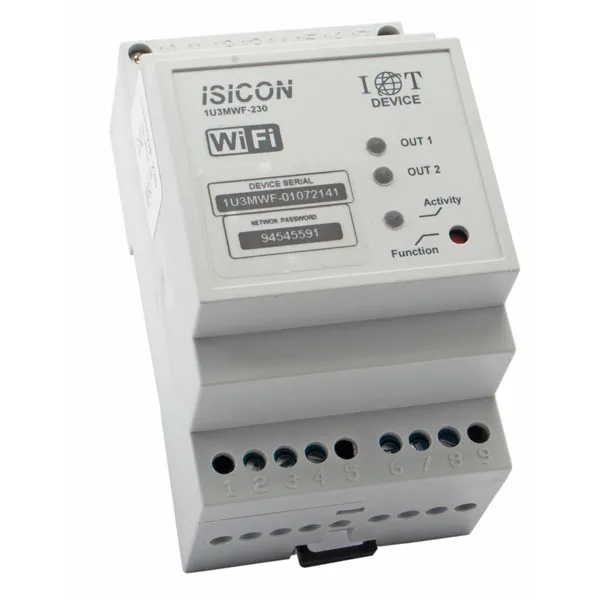

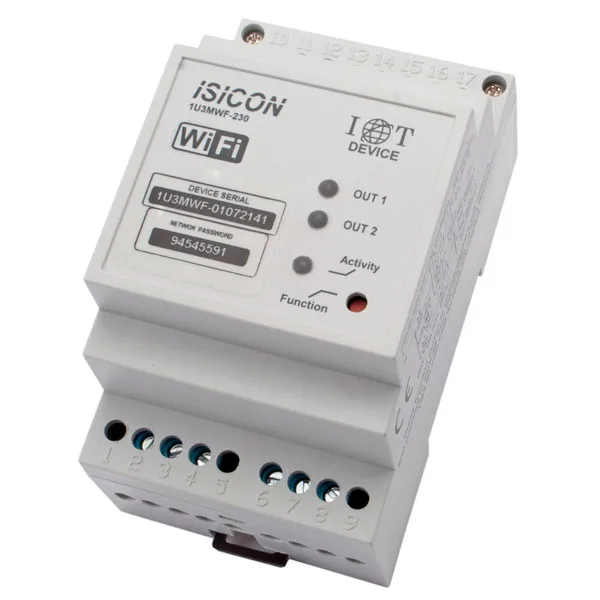

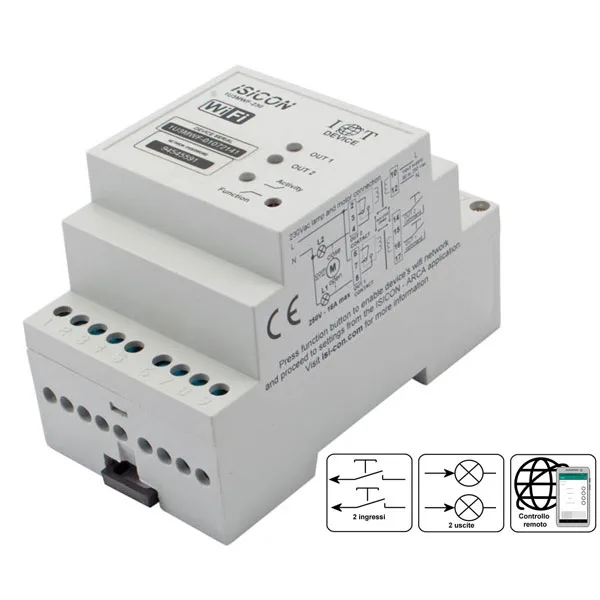

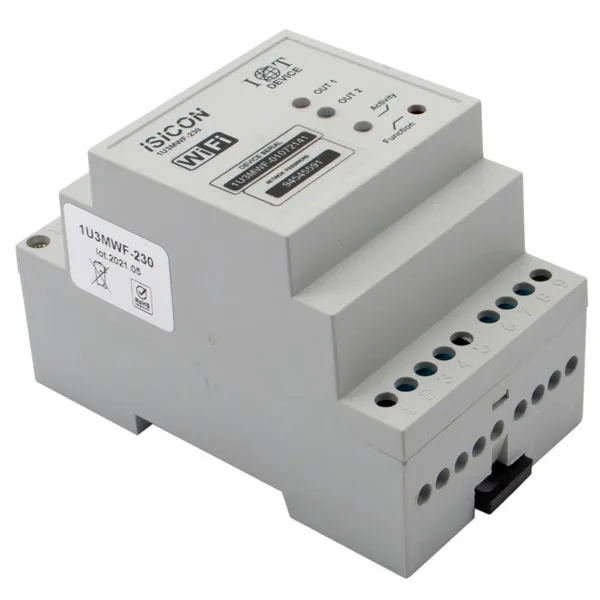

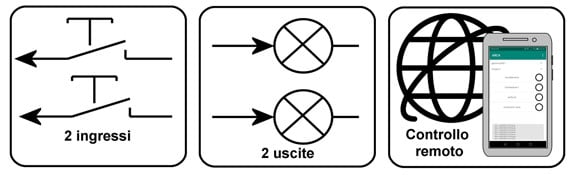

Relay module 2IN-2OUT, wired and App control

Programmable DIN-rail module (3-way module) with 2 inputs and 2 relay outputs with N.O. contacts
Relay module 2IN-2OUT, wired and App control - Image 1
Relay module 2IN-2OUT, wired and App control - Image 3
Relay module 2IN-2OUT, wired and App control - Image 4
Relay module 2IN-2OUT, wired and App control - Image 5

SKU 6199-1U3MWF-230EAN 8219671121859Item type: Assembled,

Description

Programmable DIN-rail module (3-way module) with 2 inputs and 2 relay outputs with N.O. and N.C. contacts, wired control or control from a smartphone App (ISICON-ARCA, Android only). The App lets you set the logic and the timing of each output, with switch-on and switch-off delays. With an internet connection through an access point you can set a weekly switching schedule. Any load up to 250 VAC and 16 A can be connected to each output. The outputs are isolated from one another, so circuits at different voltages can be connected. Power supply: 110-230V 50/60Hz, output contact rating: 250V 16A 3.5kW. Fields of use: industrial electrical systems, home automation, semi-automatic machinery.
APPLICATIONS

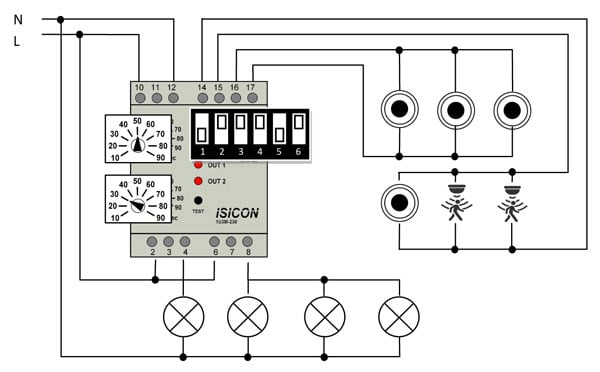

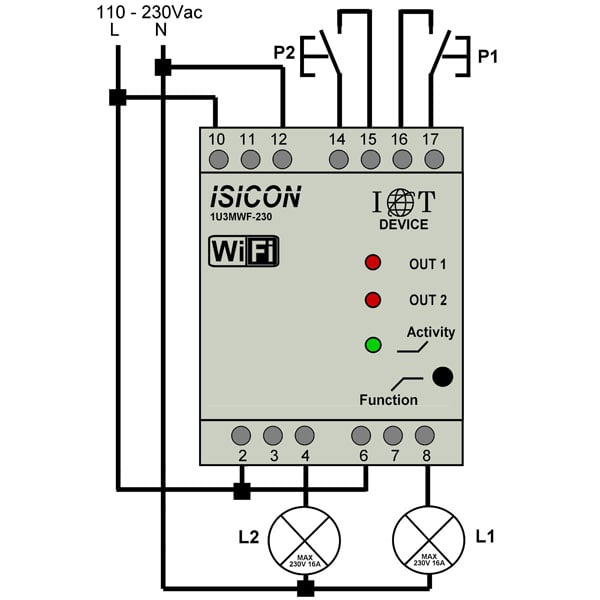

Control of 2 lighting groups from 6 control points made up of pushbuttons and motion sensors

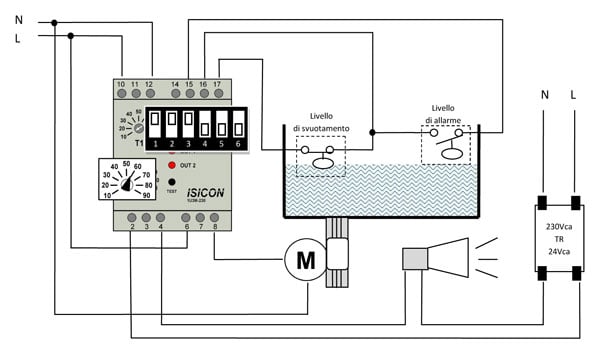

Control of a 230Vac tank-emptying pump driven by a liquid level sensor on output
1 and of a 24V siren driven by a second liquid level sensor on output 2
Technical features
  • CONTROL: wired and remote, through the ISICON-ARCA app on Android
  • CONNECTIVITY: with an Android device and a modem / router connected to the internet
  • MODULE SETUP: only from an Android device with the ISICON-ARCA app
  • MAIN FEATURES:
    – Astable and monostable output logic
    – Output timing
    – Weekly timer
    – Configurable inputs
Technical specifications
  • 2 Inputs: isolated from the mains voltage and from the outputs
  • 2 Relay outputs: contact rating 16 A AC up to 250 V / 16 A DC up to 24 V
  • Mounting: switchboard or enclosure on omega DIN rail

Technical details

Power supply 110-230 VAC 50/60 Hz
Consumption min. 0.4 watt / max. 2.5 watt
Timer error 3%
Outdoor use only if housed in an IP65 enclosure
Operating temperature -10°C to +80°C
