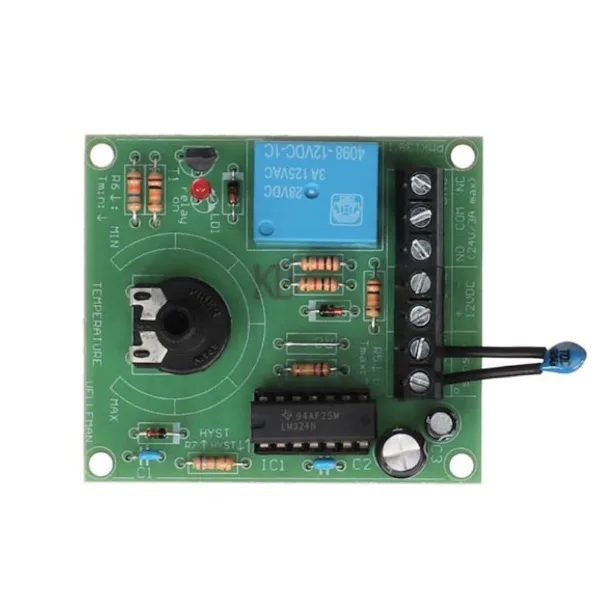

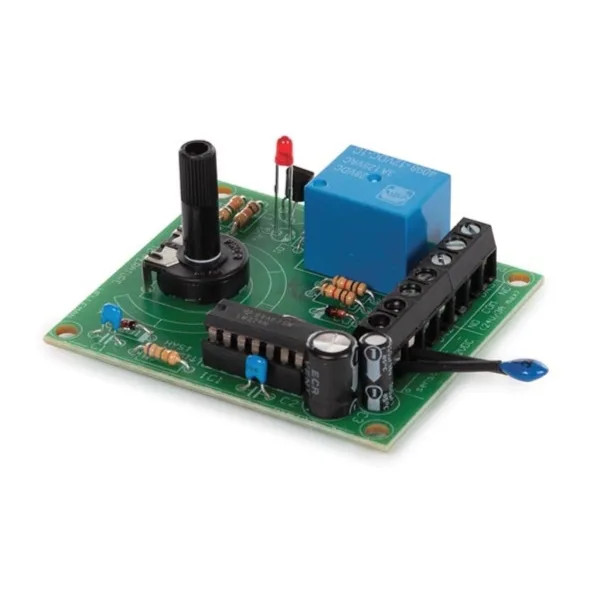

Relay Thermostat for Heating and Air Conditioning Control – Assembled
SKU 8220-VM137EAN 5410329363291Item type: AssembledTimers & thermostats
Description
The Relay Thermostat is the ideal solution for precise control of heating and air conditioning systems. This versatile device features an output relay and an intuitive LED indicator, making it suitable for a wide range of applications, including heating system control, air conditioning system monitoring, and fan control.
With a temperature range from 5°C to 30°C (41 to 86°F), our thermostat offers accurate regulation to ensure optimal comfort in any environment. The hysteresis of only 1°C (1.8°F) guarantees exceptional thermal stability, avoiding unwanted temperature fluctuations.
The output relay has a rated power of 24 Vdc/Vac and 3 A, ensuring a safe and reliable connection with your system. Additionally, the thermostat is low-power, requiring only 12 Vdc and 100 mA.
The compact dimensions of the thermostat (54 x 62 x 28 mm) allow for discreet installation in any environment, and it is supplied pre-assembled for your convenience.
Technical details
| Temperature range | from 5°C to 30°C (41 to 86°F) |
|---|---|
| Relay rated power | 24 Vdc/Vac - 3 A |
| Power supply | 12 Vdc / 100 mA |
| Hysteresis | 1°C (1.8°F) |
| Dimensions | 54 x 62 x 28 mm |
