Sensor Side Panel for Mini Lab

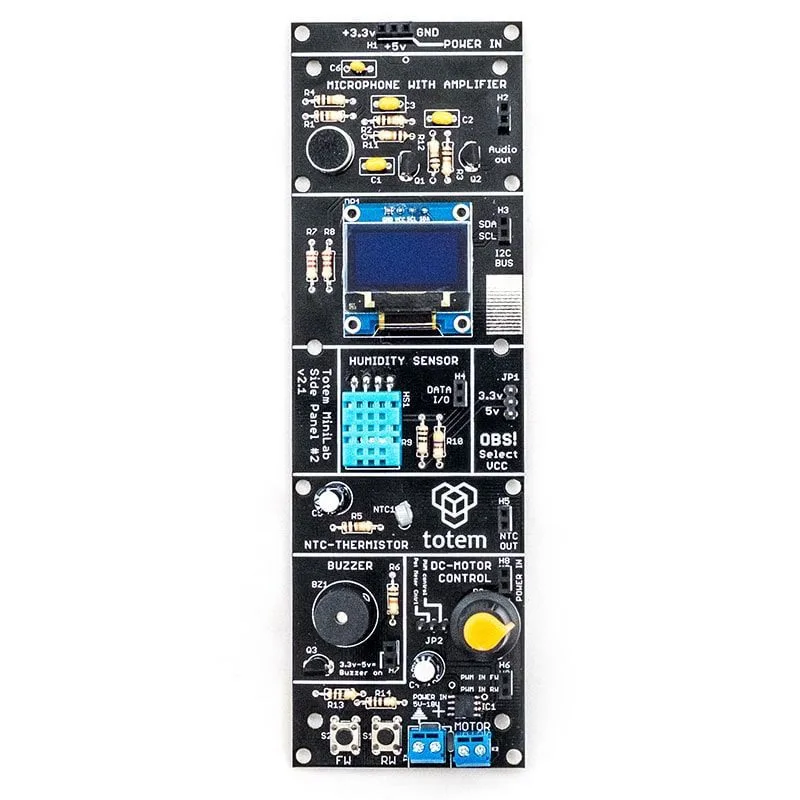

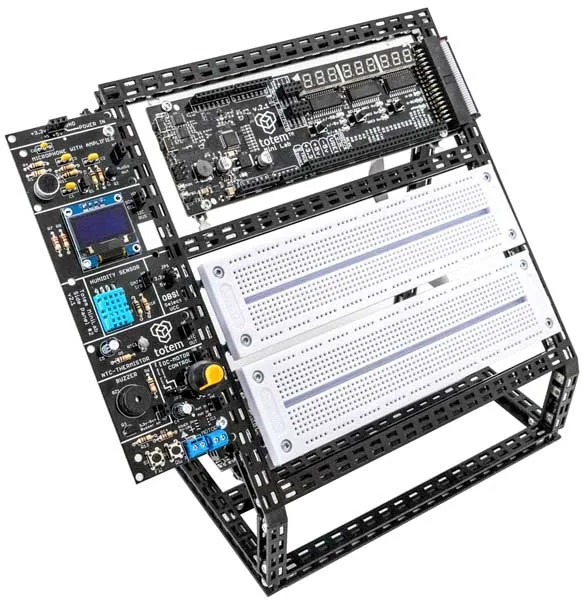

The sensor and display side panel is designed to be used as an add-on for the Totem Mini Lab (not included, see related products). This side panel puts the following parts within easy reach: a preamplified microphone, a 128×64 OLED display with I²C interface, a DHT11 humidity sensor, a 10 kohm NTC thermistor, a buzzer and a small DC motor driver.

The side panels exist to give easy access to everyday parts that are hard to wire on a breadboard because of their size, or that need extra equipment to run. The side panels offer a plug and play interface that lets users concentrate on the experiment or on learning, instead of losing time working out how to connect each part.

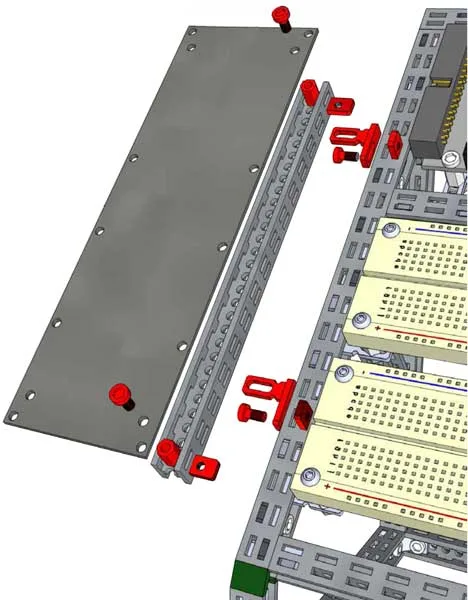

The kit includes all the mechanical parts and the tools needed to fit the side panel to the Totem Mini Lab frame, ready to use.

• Side Panel #1 User Guide
