Step-down DC/DC converter with 12V output – 1A – 3-pin

Buck step-down converter module: takes voltages from 11 to 40 V and gives a fixed 12 V output with current up to 1 A.

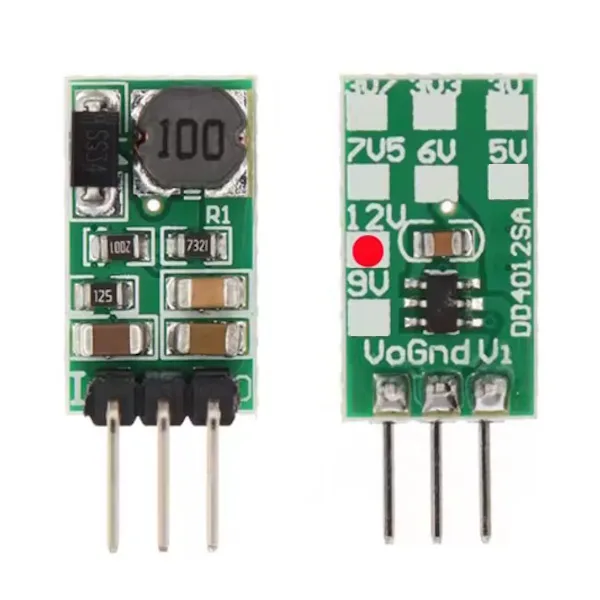

Step-down DC/DC converter with 12V output - 1A - 3-pin - Image 1

SKU 2846-REG1ADC12VKEAN 8219671114387Output voltage: 12 VdcItem type: AssembledConversion type: Step-down

Description

This buck step-down DC-DC converter is ideal for bringing high voltages (up to 40 V) down to 12 V efficiently. With a stable output of up to 1 A, it is perfect for powering sensors, logic modules and other 12 V circuits. The module offers overload protection, high efficiency and a compact size, which makes it suitable for embedded projects, automation and powering electronic components. With its three terminals it is easy to fit into existing systems in place of traditional voltage regulators.
Technical features
  • Short-circuit and over-temperature protection: Yes

Technical details

Input voltage 11 V to 40 V
Output voltage 12 V
Output current max. 1 A
Switching frequency 550 KHz
Conversion efficiency 76-90%
Overcurrent protection Yes
Operating temperature -40°C to +85°C
Connector pitch 2.54 mm
Dimensions (mm) 22.3x10.2x6.7
Weight 2.5 grams
