Switching DC/DC regulator 5V 1.5A TO-220, 7805 compatible
DC/DC regulator with 5V/1.5A output in a TO-220 form factor, using switching technology for higher efficiency and lower heat dissipation than traditional regulators. Ideal for powering electronic devices and DIY projects.
SKU 1320-TO220AP63205EAN 8219671102612Output voltage: 5 VdcItem type: AssembledConversion type: Step-downDC/DC converters, Voltage regulators
Description
This DC/DC regulator with 5V output in a TO-220 form factor, built around an integrated circuit, is a modern and efficient alternative to the traditional 7805 regulator. While keeping the classic TO-220 outline, it uses switching technology, which delivers higher energy efficiency and lower heat dissipation than linear regulators.
 With an input voltage between 5.5V and 32V, this TO-220 DC/DC regulator provides a 5V output able to supply up to 1.5A, which makes it ideal for powering electronic devices, microcontrollers and DIY projects. Thanks to its 1 MHz switching frequency and its low 22 µA quiescent current, it suits applications that call for high efficiency and low power consumption. A practical, high-performing way to improve your electronic circuits! |

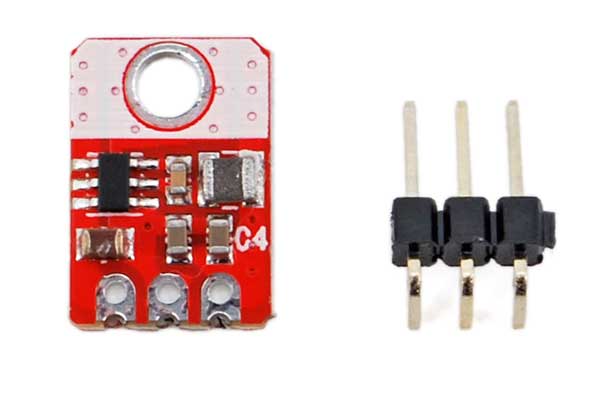

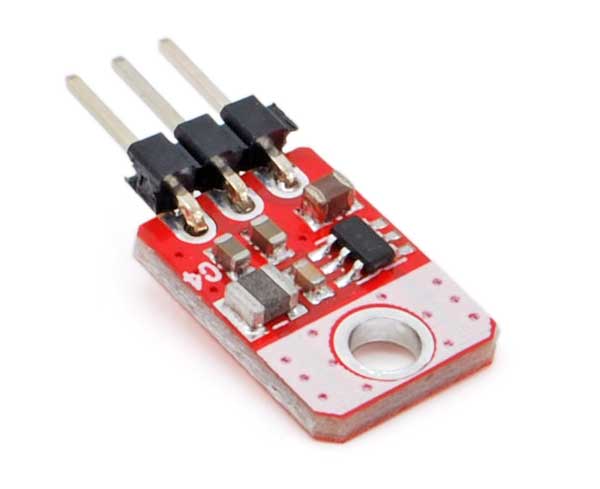

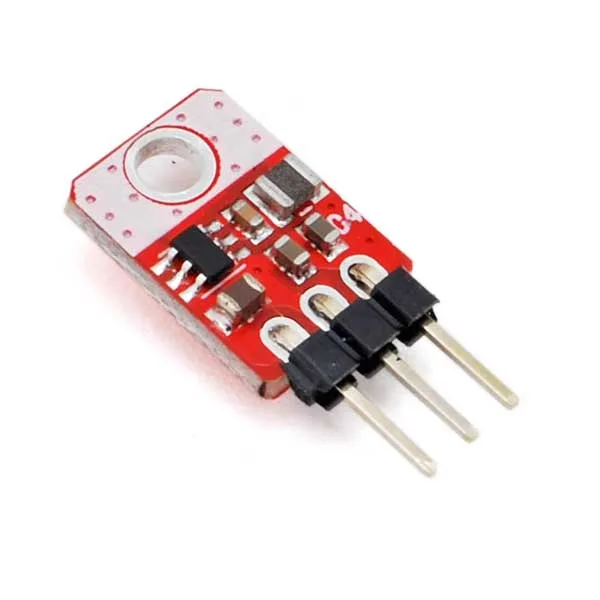

| The PCB form factor echoes the TO-220 package |
 |

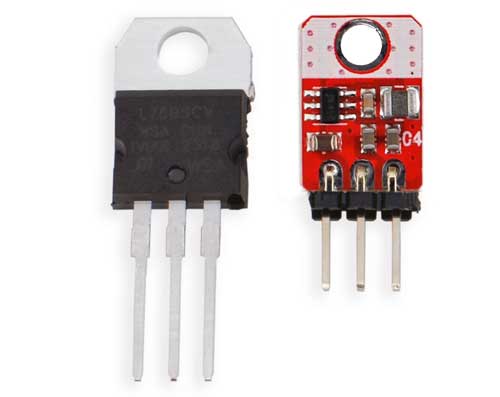

| Our DC/DC regulator compared with a 78xx regulator |

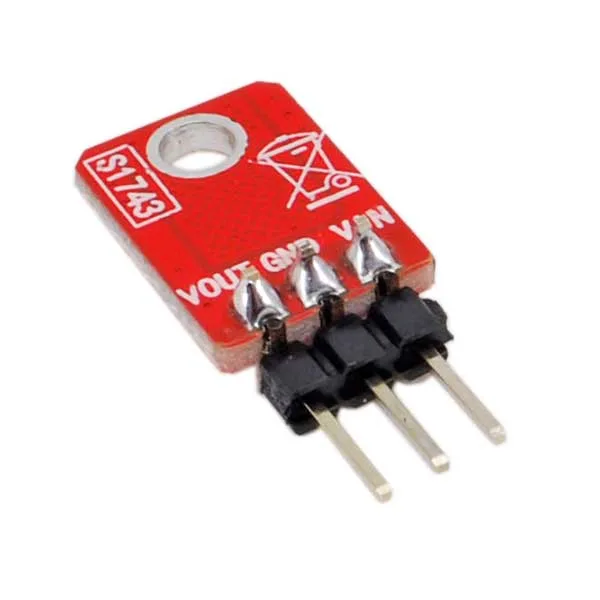

 The 3mm hole at the top is connected to GND. The 3 vias near the right and left edges of the PCB (close to the hole) are not connected to GND |

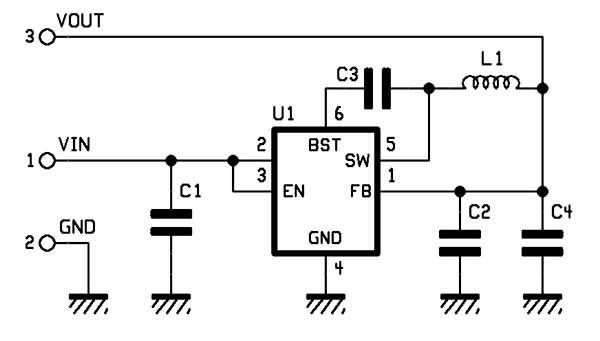

| Circuit diagram |
 |
| Documentation |
Technical details
| Input voltage | 5.5÷32Vdc |
|---|---|
| Output voltage | 5V |
| Output current | 1.5A |
| Switching frequency | 1 MHz |
| Quiescent current | 22 µA |
