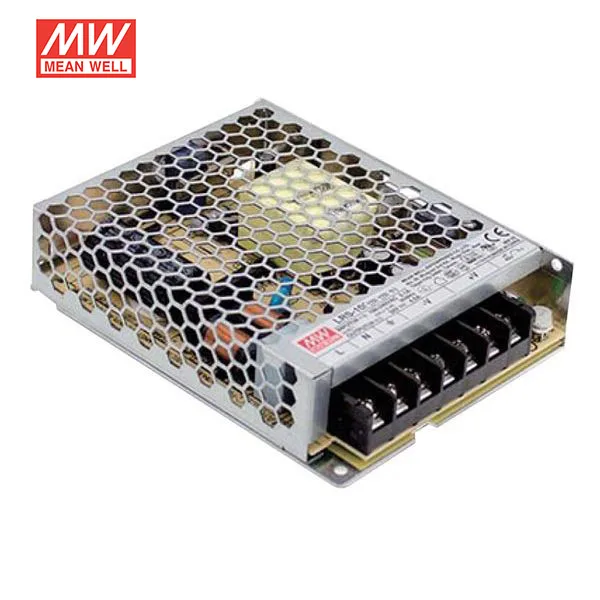

Switching power supply 12V – 100W
High-efficiency switching bench power supply, long life and high reliability.
SKU 8220-LRS-100-12EAN 5410329676995Output voltage: 12 VdcBench power supplies
Description
|
Switching power supply 12V – 100W, a bench unit built with high-efficiency switching technology, long life and high reliability. Metal case, convection air cooling, input voltage: 85 to 264 Vac, output voltage 12 volts, current 8.5 A, power 100 W. It has a power indicator LED and protection against short circuit, overload, overvoltage and overtemperature. Switching technology keeps the weight down and gives the unit very high energy efficiency. |
|
Technical specifications
|
|
|
Documentation and useful links
|
Technical details
| frequency range | 47-63 Hz |
|---|---|
| Inrush current | 50 A / 230 Vac (cold start) |
| Leakage current | <0.75 mA / 240 Vac |
| Output voltage | 12 Vdc |
| Output voltage range | 10.2 V to 13.8 V (adjustable) |
| Output current | 8.5 A |
| Current range | 0 to 8.5 A |
| Ripple and noise (max) | 120 mVp-p |
| Output power | 100 watts |
| Efficiency | 88% |
| Connection | 7-way terminal block |
| overload | 110-150% of rated output power |
| overvoltage | 13.8 - 16.2 V |
| Safety standards | UL60950-1, TÜV EN60950-1 approved |
