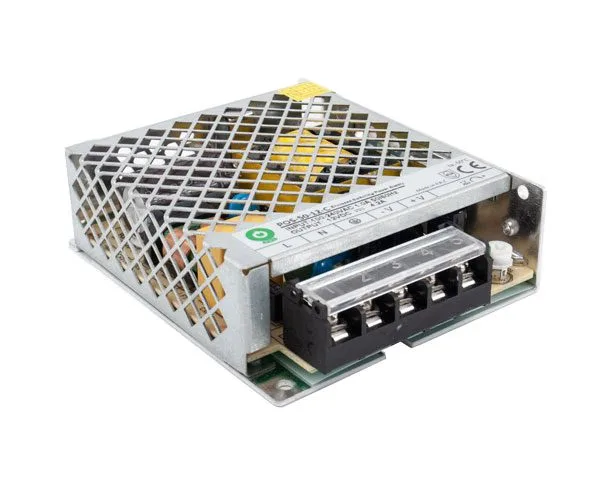

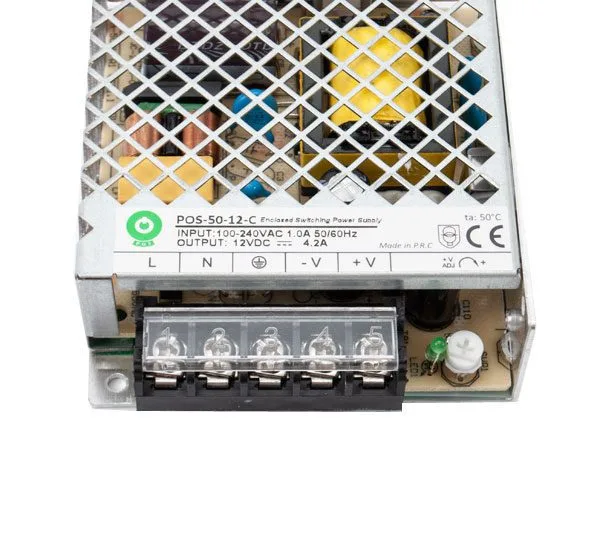

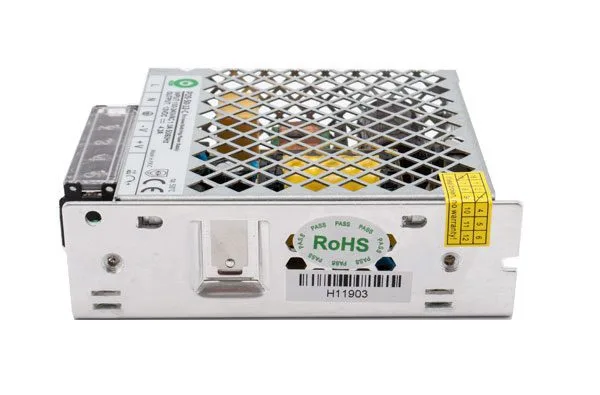

Switching Power Supply 12V – 50W
High-efficiency switching bench power supply, long service life and high reliability
SKU 4125-MW05012EAN 8219671083226Output voltage: 12 VdcBench power supplies
Description
| High-efficiency switching bench power supply, long service life and high reliability. Metal enclosure, natural convection cooling, input voltage: 85 to 264 VAC, output voltage 12 volts, current 4.2 A, power 50.4 W. It features a power-on indicator LED and short-circuit and overload protection. Switching technology brings a considerable saving in weight together with outstanding energy efficiency. |
| Technical specifications |
|
Technical details
| Input voltage | 170 - 264 VAC |
|---|---|
| Leakage current | <1 mA / 240 VAC |
| Output voltage | 12 VDC (± 2%) |
| Output voltage range | 10.8 V to 13.2 V (adjustable) |
| Output current | 4.2 A |
| Current range | 0 to 4.2 A |
| Ripple and noise (max) | 100 mVpp |
| Output power | 50.4 W |
| Efficiency | 78% |
| Connection | 5-way terminal block |
| Overload protection | 105-150% of rated output power |
| Dimensions (mm) | 105 (length) x 83 (width) x 30 (height) |
| Weight | 213 g |
| Operating temperature | -10°C to +60°C |
