Switching power supply 24V – 100W
High-efficiency switching bench power supply, long life and high reliability
SKU 4125-MW10024EAN 8219671083258Output voltage: 24 VdcBench power supplies
Description

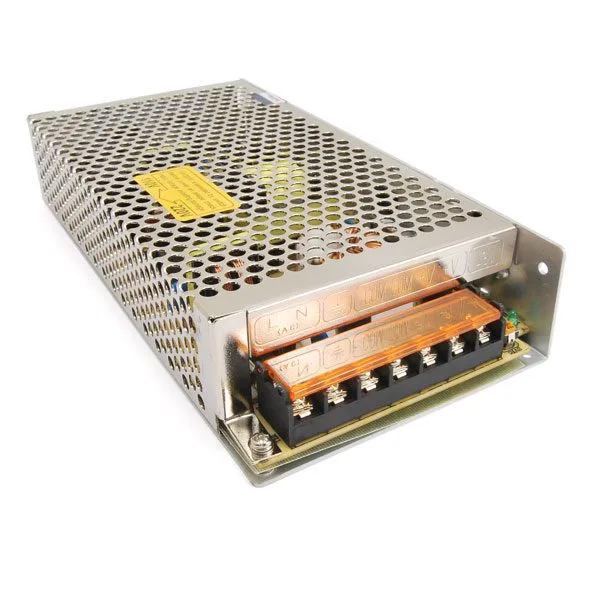

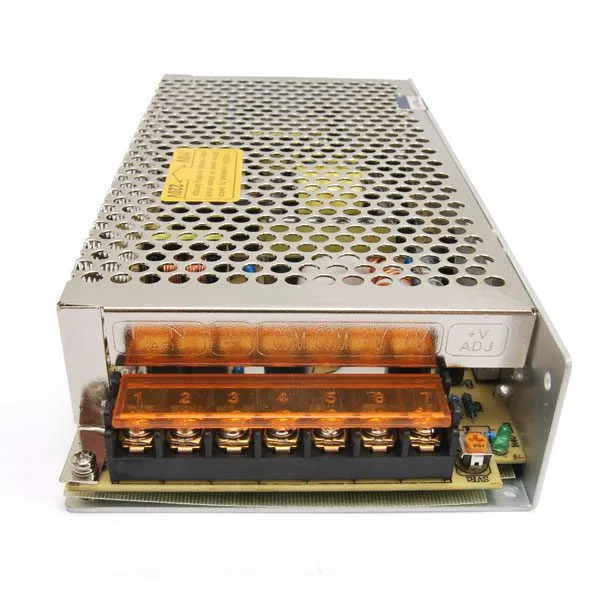

| High-efficiency switching bench power supply, long life and high reliability. Metal case, natural convection cooling, input voltage: 170 to 264 VAC, output voltage 24 volts, current 4.5 A, power 108 W. It has a power indicator LED and short-circuit and overload protection. Switching technology keeps the weight down and gives the unit very high energy efficiency. |
| Technical specifications |
|
Technical details
| Input voltage | 170 - 264 VAC |
|---|---|
| Leakage current | <1 mA / 240 VAC |
| Output voltage | 24 VDC (± 2%) |
| Output voltage range | 21.6 V to 26.4 V (adjustable) |
| Output current | 4.5 A |
| Current range | 0 to 4.5 A |
| Ripple and noise (max) | 100 mVpp |
| Output power | 108 W |
| Efficiency | 84% |
| Connection | 5-way terminal block |
| Overload protection | 105-150% of rated output power |
| Operating temperature | from -10°C to +60°C |
| Humidity | 20-90% RH non-condensing |
| Storage | from -20°C to +85°C, 10-95% RH |
