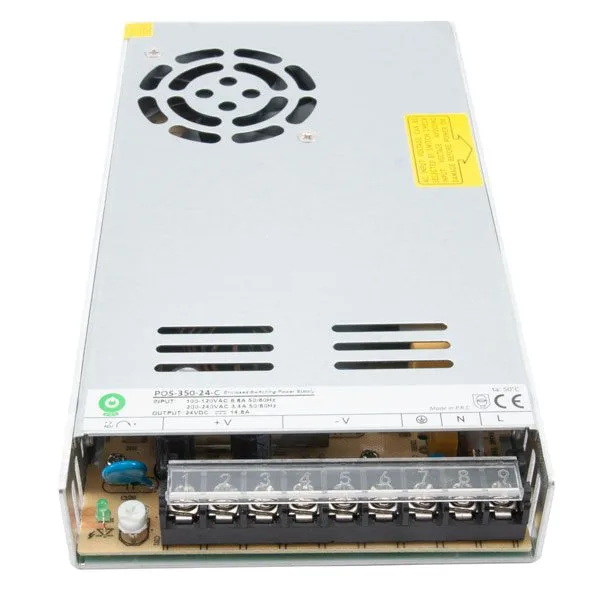

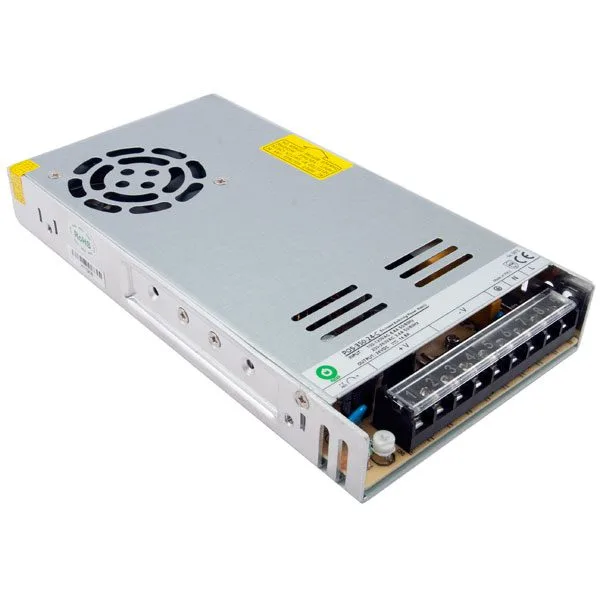

Switching power supply 24V – 350W
Industrial switching power supply, 24 Vdc - 350W
SKU 4125-MW35024EAN 8219671083331Output voltage: 24 VdcBench power supplies
Description
| Bench power supply using high-efficiency switching technology, with long service life and outstanding reliability. Metal enclosure, fan cooling, input voltage from 100 to 240 VAC, output voltage 24 volts, current 14.5 A, power 350.4 W. It features a power-on LED indicator plus short-circuit and overload protection. Switching technology gives the unit a considerably lower weight and a very high energy efficiency. |
| Technical specifications |
|
Technical details
| Input voltage | 100-120 VAC / 200-240 VAC (selectable) |
|---|---|
| Leakage current | <3.5 mA / 240 VAC |
| Output voltage | 24 VDC (± 2%) |
| Output voltage range | 20 V to 26.4 V (adjustable) |
| Output current | 14.6 A |
| Current range | 0 to 14.5 A |
| Ripple and noise (max) | 150 mVpp |
| Output power | 350.4 W |
| Efficiency | 81% |
| Connection | 9-way terminal block |
| Overload protection | 105-135% of rated output power |
| Operating temperature | -10°C to +50°C |
| Humidity | 20-90% RH non-condensing |
| Storage | -20°C to +85°C, 10-95% RH |
