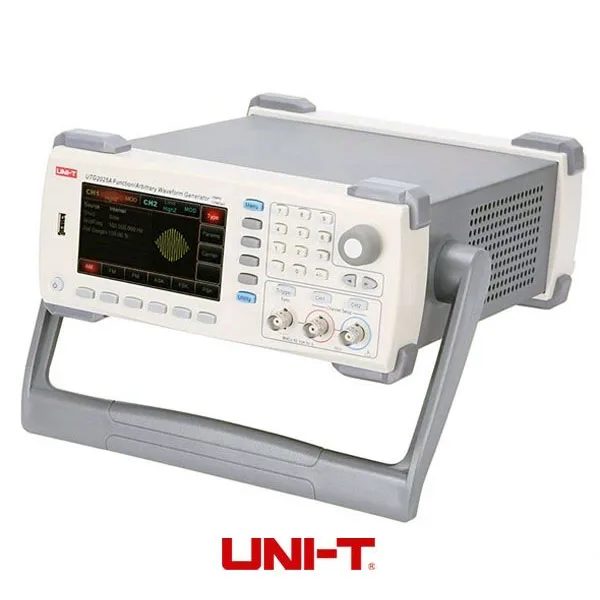

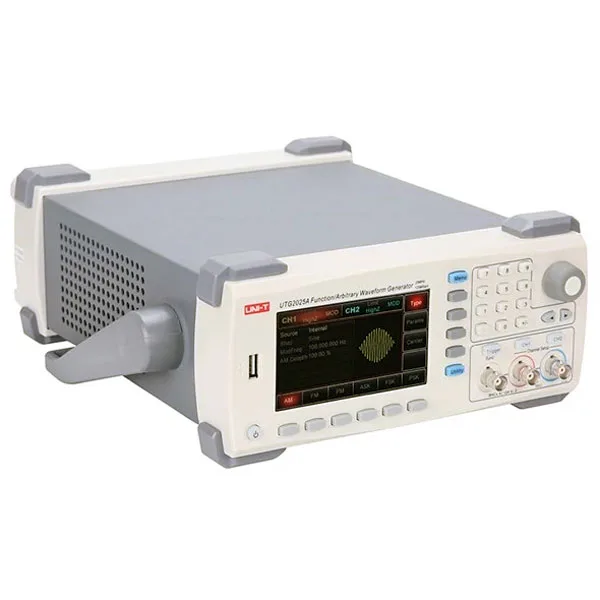

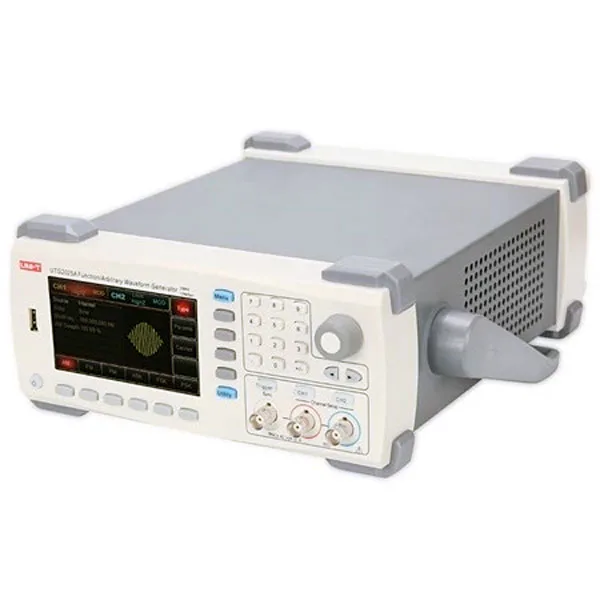

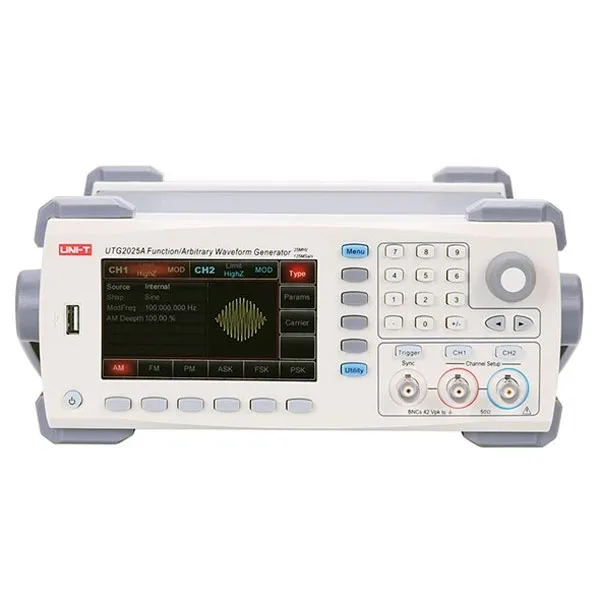

UNI-T function generator – 2 channels 25 MHz

Fields of application: analogue sensors, simulated environment signals, circuit testing, IC testing, research and training.

• Standard waveforms: sine, square, ramp, triangle, pulse, Gaussian noise, DC, arbitrary
• Arbitrary waveforms:
  – Output signal amplitude: up to 5 Vpp into 50 Ω, or up to 10 Vpp in high impedance mode
  – Output impedance: adjustable from 1Ω up to 1 kΩ, or High Z; factory setting 50Ω
• DC Offset:
  – Range ±5 V (50 Ω) – ± 10 V (High Z)
• COUNTER:
  – Frequency measurement of TTL-compatible signals: yes, over 100 mHz ÷ 200 MHz with an accuracy of ± 51 ppm
• Other:
  – Modulation types: AM, FM, PM, ASK, FSK, PSK, PWM
  – Sweep and Burst modes
  – Interface: USB
• General features:
  – Colour: white and grey
  – Power supply: 100 ÷ 240 VAC, 50 Hz / 60 Hz
  – Consumption: <40W
  – Protection: 250 V, T2 A fuse
  – Display: 4.3” TFT LCD, WVGA (480×272)

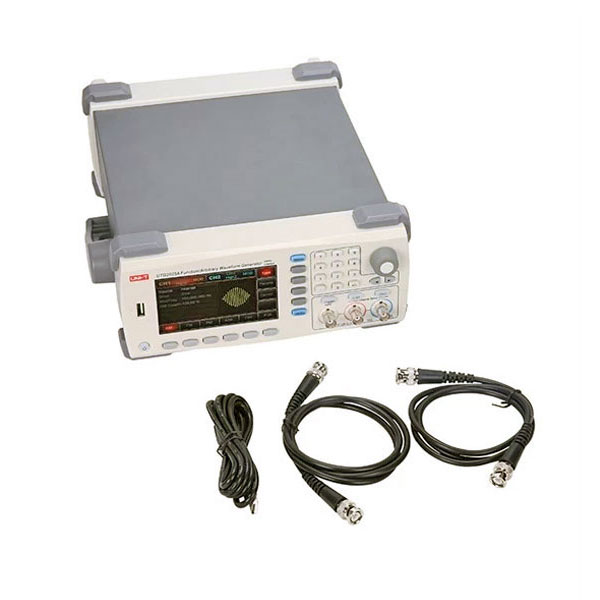

  – Accessories: USB cable, power cable, BNC-BNC cable, instruction manual
  – Dimensions (mm): 265x110x320
  – Weight: 3200 grams
