Water Flow Sensor

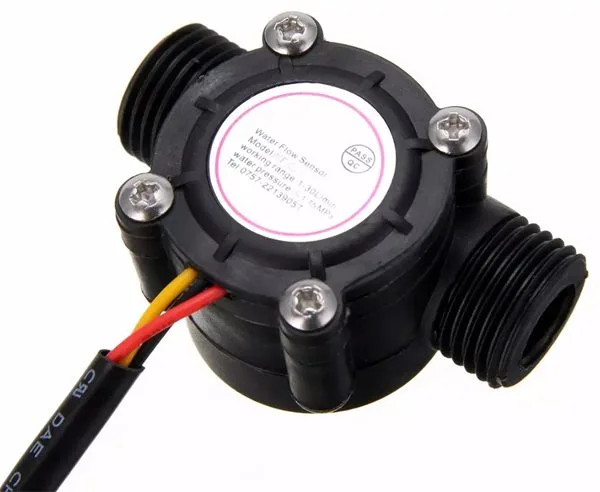

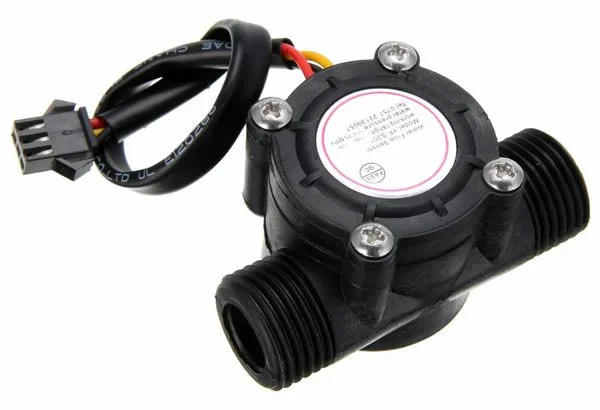

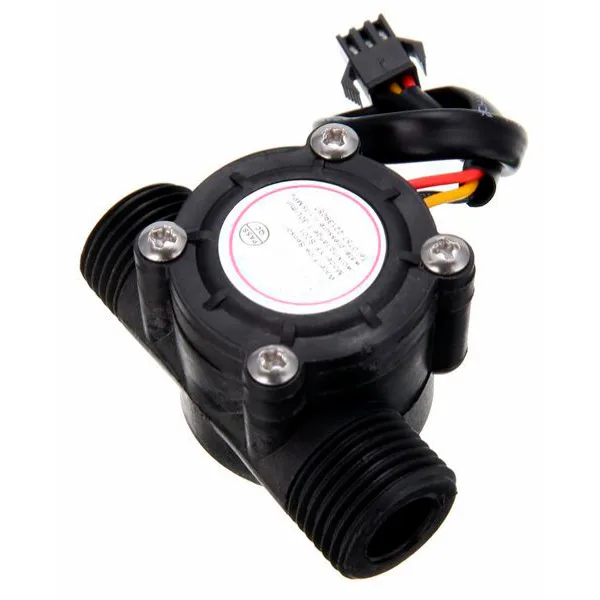

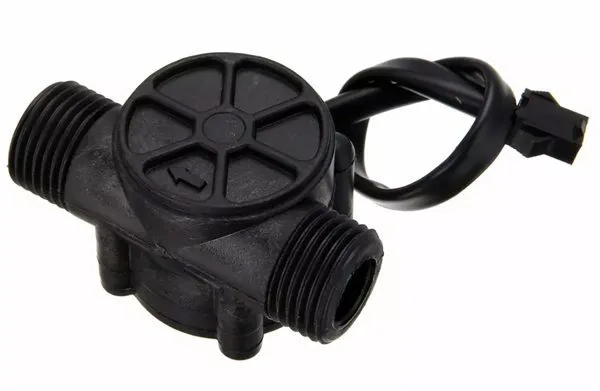

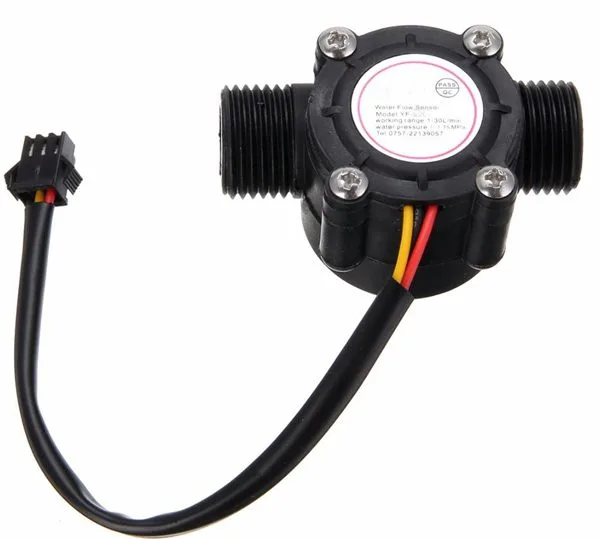

Water flow sensor built around a plastic-bodied valve housing an impeller and a magnetic pick-up
SKU 8300-WFSENSORNEAN 8219671102247Item type: AssembledSensors
Description
Sensor for measuring water flow, consisting of a valve with a plastic body housing an impeller and a magnetic pick-up. The impeller is set in rotation by the water flowing through the sensor: the greater the water flow, the higher the number of rotations detected by the magnetic pick-up. The number of pulses on the output terminal is therefore directly proportional to the water flow.
Example of use with Arduino/Fishino
Technical specifications
Documentation and useful links
Technical details
| Power supply | 5 to 24 V |
|---|---|
| Current | 15 mA (at 5 V) |
| Maximum operating pressure | < 1.75 MPa |
| Recommended flow rate | 1 to 30 liters / minute |
| Insulation resistance | ≥ 100 MΩ |
| Dimensions (mm) | 62x36x34.5 |
| External threads | 1/2 " |
| external | 20 mm |
| suction | 8 mm |
| outlet | 10 mm |
| Cable length | 160 mm (including connector) |
| Operating temperature | from -25°C to +80°C |
| Weight | 49.5 g |
