ATGM336H GPS module with active antenna
SKU 8300-ATGM336HEAN 8219671109093Item type: AssembledGPS
Description
|

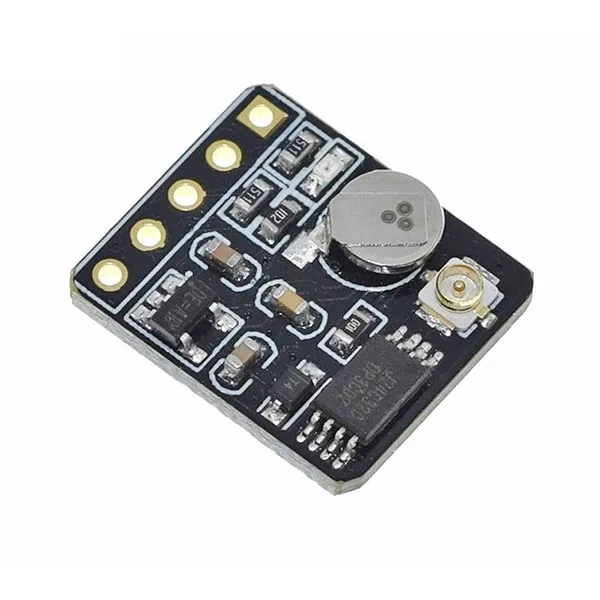

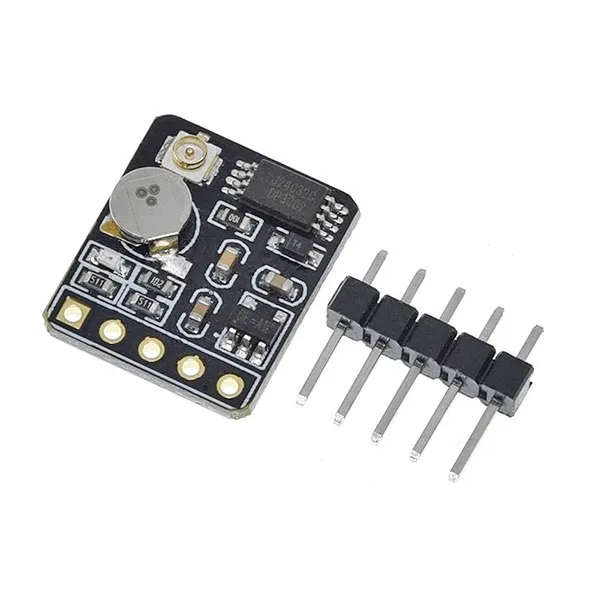

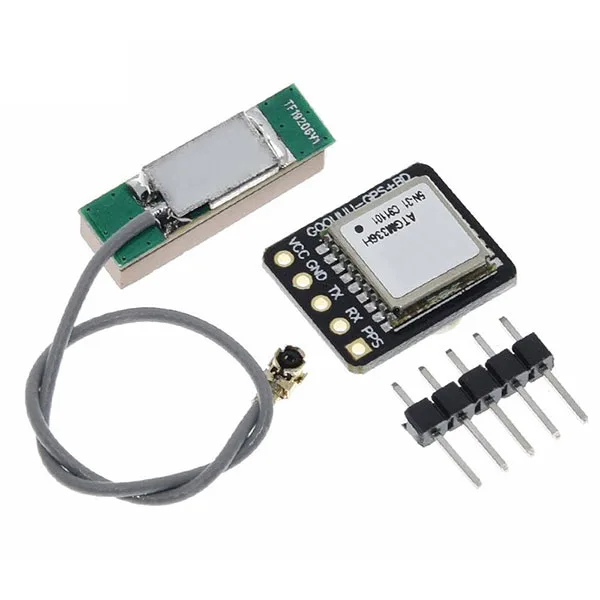

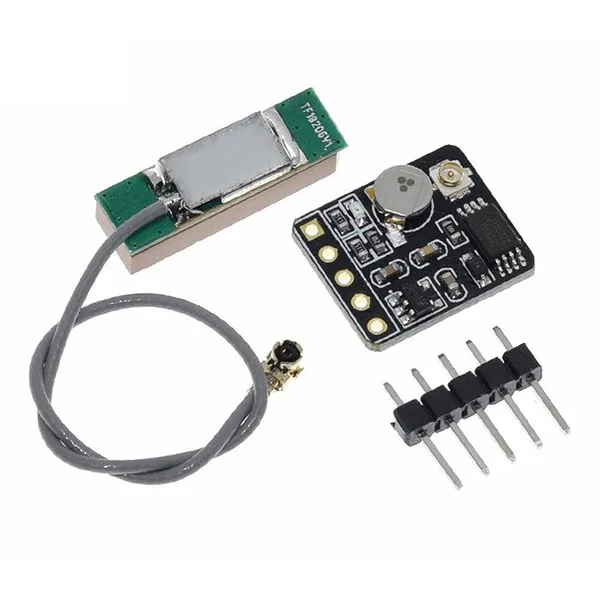

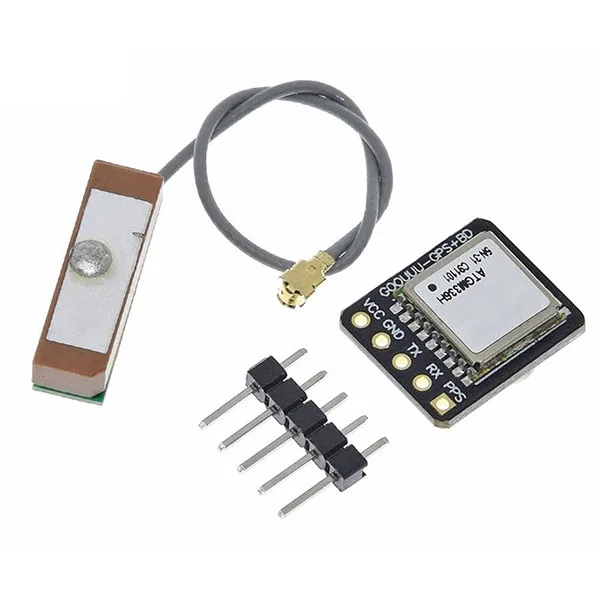

The ATGM336H module is a compact, high-performance solution for GNSS reception, compatible with the GPS, Beidou and GLONASS systems. Thanks to its high sensitivity and very short fix time, it is perfect for applications such as vehicle tracking, drones, robotics and IoT devices. The system includes an active ceramic antenna that connects through a U.FL connector (cable included), delivering excellent performance even in difficult reception conditions. The communication interface is UART (TX/RX), with NMEA-format output, fully compatible with Arduino, ESP32, STM32, Raspberry Pi and other microcontrollers. The module also supports A-GNSS positioning, includes antenna detection and short-circuit protection, and works over a wide voltage range from 3.3 to 5 V.
|
|
|
Technical specifications
|
|
|
|
|

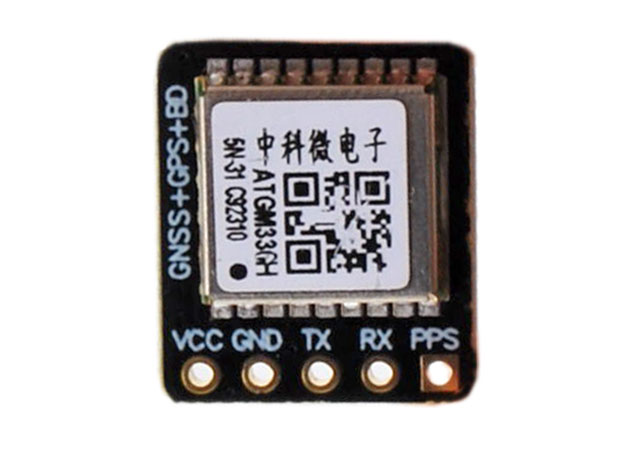

PINOUT
|
|
|
|
| Package contents | |
|
Technical details
| Modes | single-system or combined multi-system positioning |
|---|---|
| Cold start sensitivity | -148 dBm |
| Tracking sensitivity | -162 dBm |
| Positioning accuracy | 2.5 m CEP50 (open field) |
| Time to first fix | 32 seconds |
| Operating voltage | 3.3 V – 5 V |
| Current draw | 25 mA |
| Interface | UART (TXD/RXD) |

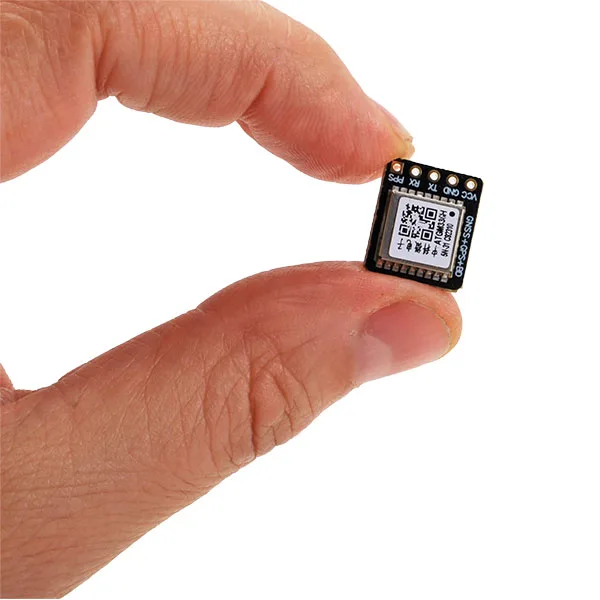

| Module dimensions | 13.1 x 15.7 mm |
| Antenna | active, ceramic, included |
| Extra functions | antenna detection, short-circuit protection, A-GNSS |
| VCC | power supply 3.3–5 V |
| GND | ground |
| TXD | data out (UART) |
