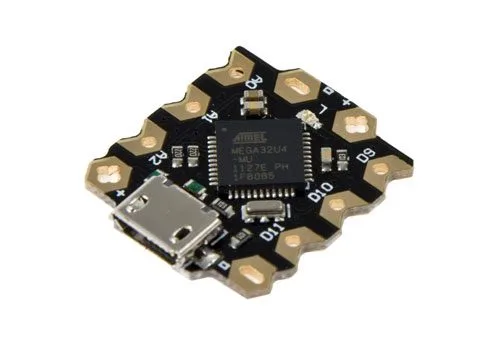

Beetle ATmega32U4 Board – assembled
Based on the Atmel ATMEGA32U4 processor and clocked at 16 MHz, this tiny board can be thought of as a miniaturised Arduino Leonardo
SKU 9145-DFR0282EAN 8219671065702Item type: Assembled, BoardArduino compatible
Description
|
|
| Based on the Atmel ATMEGA32U4 processor and clocked at 16 MHz, this tiny board can be thought of as a miniaturised Arduino Leonardo. Supplied with a bootloader that lets you upload any new code written for Arduino Leonardo, it has 10 digital pins, 5 analogue pins, 4 PWM pins and a micro USB connector for direct programming and experimenting. Particularly suited as a low-cost solution for throwaway projects: DIY builds, workshops, gift projects and so on. Power supply: 5 Vdc, dimensions (mm): 20×22. |
|
Documentation and useful links
|
|
|
Technical details
| Microcontroller | ATmega32u4 |
|---|---|
| Flash memory | 32 KB (4 KB used by the bootloader) |
| SRAM | 2.5 KB |
| EEPROM | 1 KB |
| Clock Speed | 16 MHz |
| Power supply | 5 Vdc |
| Digital I/O | 10 |
| PWM | 4 |
| Analogue inputs | 5 |
| UART | 1 |
| I2C | 1 |
| Micro USB | 1 |
