FM Radio Shield for Arduino – Assembled

FM radio shield with RDS for Arduino, with a 2.8 W class D amplifier

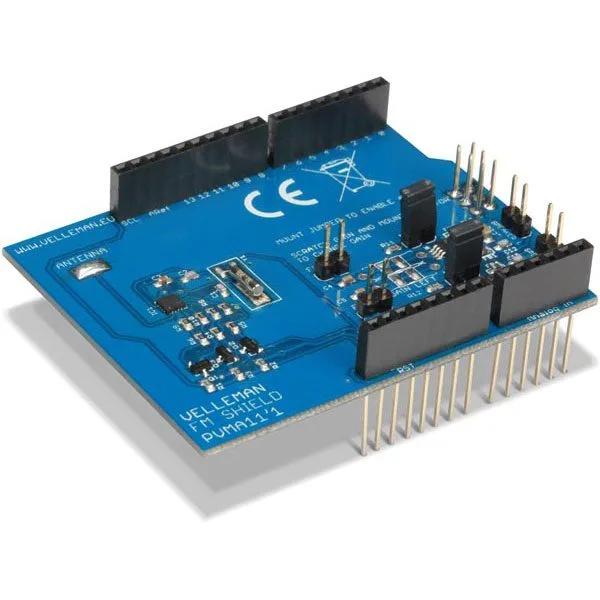

FM Radio Shield for Arduino - Assembled - Image 1

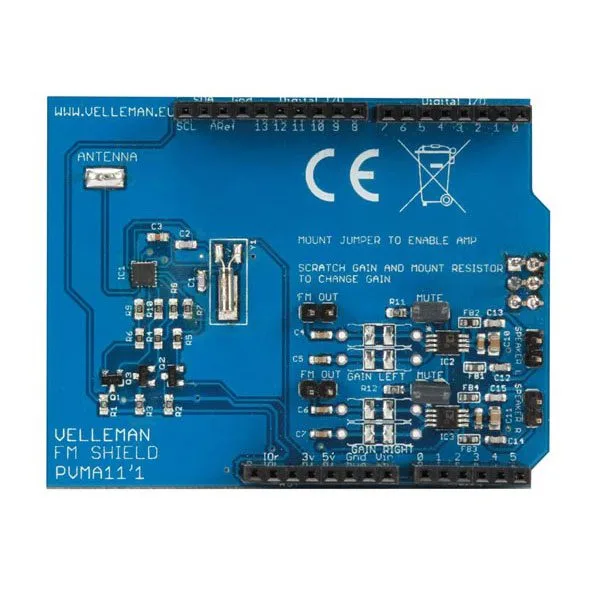

FM Radio Shield for Arduino - Assembled - Image 3

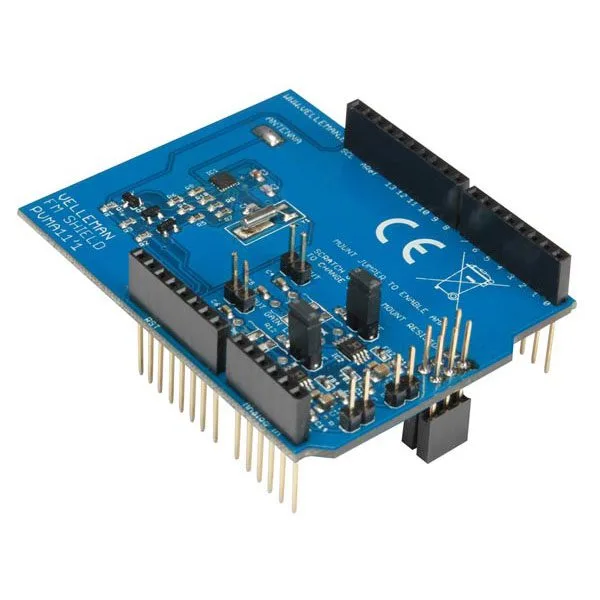

FM Radio Shield for Arduino - Assembled - Image 4

SKU 8220-VMA11EAN 5410329615390Item type: Assembled, Shields & add-ons,

Description

FM radio shield with RDS for Arduino, with a 2.8 W class D amplifier. Ideal if you want to build a simple clock radio, or to add FM to your own projects. Arduino libraries available.
Features
  • Universal FM support
  • RDS/RBDS support
  • Volume control
  • Automatic frequency control
  • Automatic gain control
  • Arduino® libraries available
  • 2.8 W class D amplifier

Technical details

Interface I2C
Power / logic level 3.3 V
Sensitivity 1.7 µ Vemf
Maximum output power 2.8 W (4 Ohm) or 1.6 W (8 Ohm)
Default gain 18 dB (8 x) (adjustable)
THD 0.02 % (1 W 8 Ohm / 1 kHz)
S/N ratio 98 dB (1.4 W / 8 Ohm)
Dimensions 68 x 54 x 23 mm
