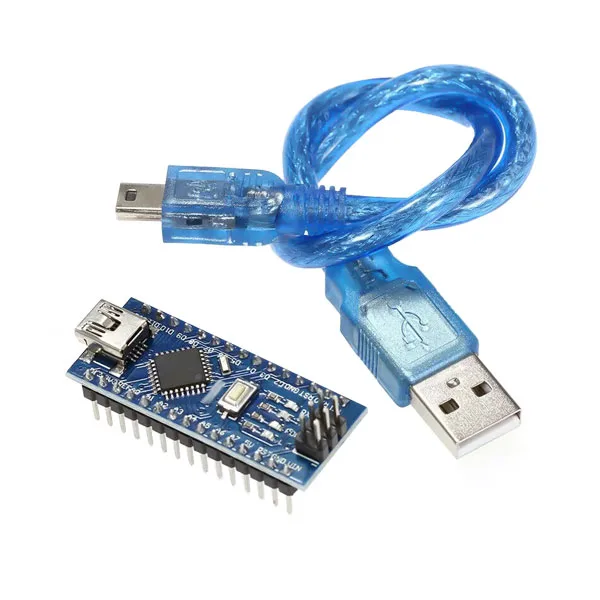

Nano Board with Atmega328
It has 14 digital inputs and outputs, six of them PWM, eight analogue inputs and 32 kB of memory; the mini USB cable is included.
SKU 8300-AC004EAN 8219671001311Item type: Assembled, BoardArduino compatible
Description
| AC004 is an electronic board compatible with the Arduino Nano and based on the Atmega328 microcontroller. It has 32 kB of Flash memory (2 kB of which used by the bootloader), 14 digital inputs/outputs (6 of which can be used as PWM outputs), 8 analogue inputs, a 16 MHz oscillator, and is programmed through a mini USB cable (included). |
|
Documentation and useful links
|
|
|
Technical details
| Microcontroller | ATmega328 |
|---|---|
| Operating voltage | 5 V |
| Input voltage | 7 to 12 V |
| Digital I/O | 14 (6 of which can be used as PWM outputs) |
| Analogue inputs | 8 |
| DC current per I/O pin | 40 mA |
| Flash memory | 32 kB (2 kB of which used by the bootloader) |
| SRAM | 2 kB |
| EEPROM | 1 kB |
| Clock | 16 MHz |
| Dimensions (mm) | 45x18x18 |
