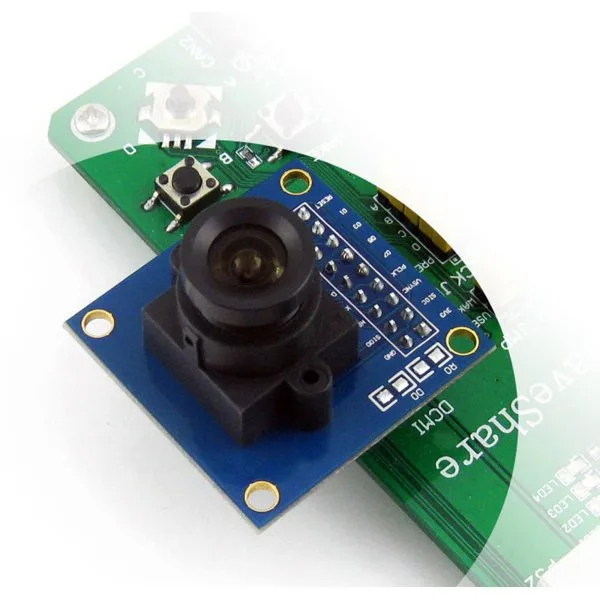

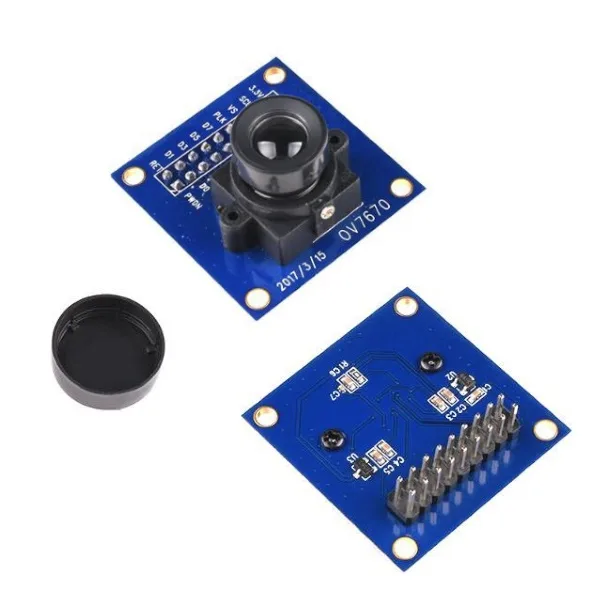

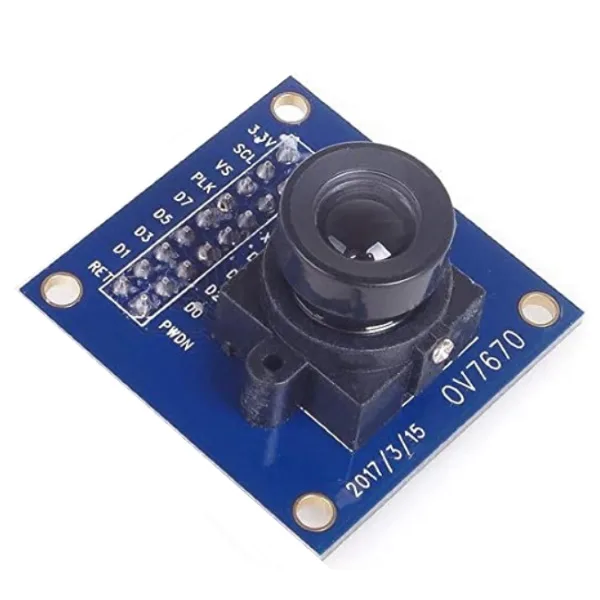

OV7670 – 0.3 MP Digital Camera Module for Arduino
Colour camera module built around a 1/4" Omnivision OV7670 CMOS image sensor of 0.3 Megapixel (640x480 pixels), fixed 1/6" lens with a 25° field of view, output formats: YUV, YCB, RGB and RGB Raw
SKU 2850-OV7670CAMERAEAN 8219671079723Item type: Assembled, Shields & add-onsArduino, Arduino compatible
Description
| Colour camera module built around a 1/4″ Omnivision OV7670 CMOS image sensor of 0.3 Megapixel (640×480 pixels), fixed 1/6″ lens with a 25° field of view, output formats: YUV, YCB, RGB and RGB Raw. It offers high sensitivity in low light, a low operating supply voltage, a standard SCCB interface compatible with I2C, and automatic image control: AEC, AGC, AWB, ABF and ABLC. Particularly suited to use with Arduino (many applications can be found online) or microcontrollers. |
|
Technical specifications
|
|
|
Documentation and useful links
|
Technical details
| Power supply | from 2.5 V to 3 V |
|---|---|
| Consumption in sleep mode | < 20 µA |
| Lens | 1/6" |
| Field of view | 25° |
| Frame Rate | 30 fps VGA |
| Signal-to-noise ratio | 46 dB |
| Dynamic Range | 52 dB |
| Operating temperature | from -30°C to +70°C |
| Dimensions (mm) | 35.2x34.3x33 |
