Single DC Motor Driver 6-27V – 43 A
Driver for bidirectional control of one DC motor with a supply voltage between 6 and 27 VDC and a current of 43 A
SKU 8300-Y173EAN 8219671113113Item type: AssembledControl electronics
Description

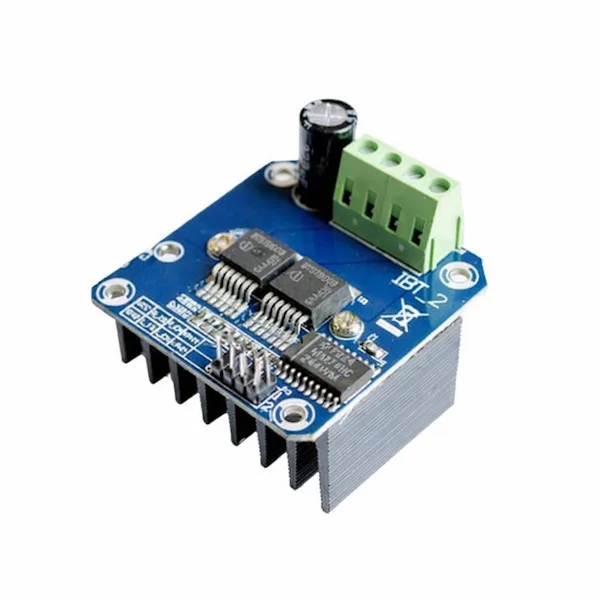

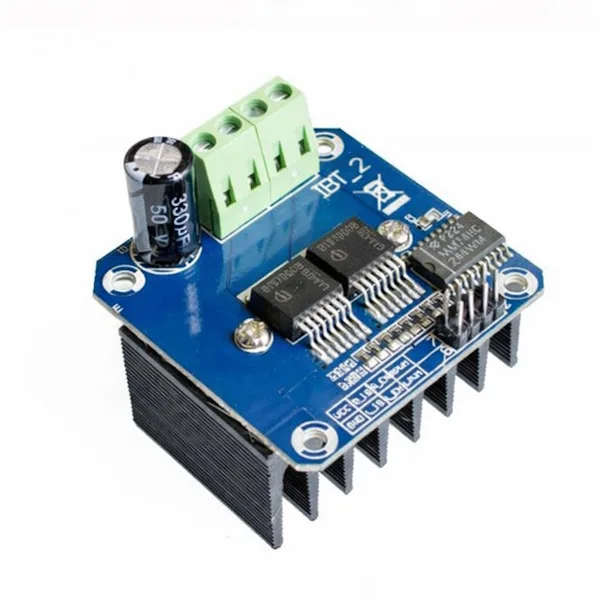

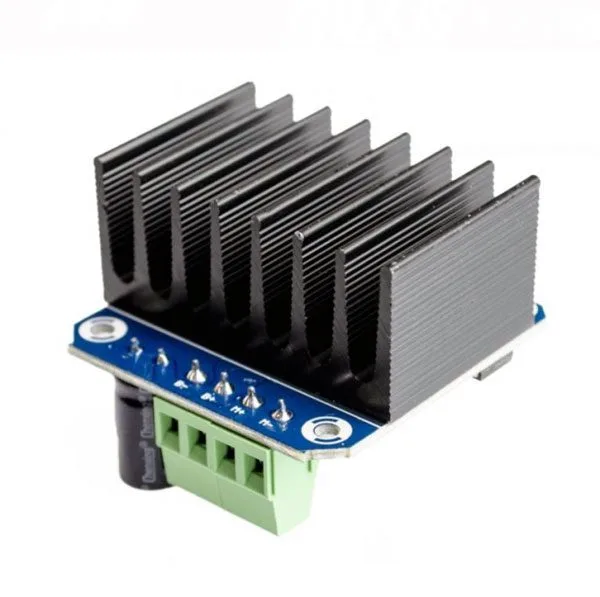

Driver for bidirectional control of a DC motor with a supply voltage between 6 and 27 VDC and a current of 43 A. It features a terminal block for connecting the motor and supply voltage, and two 8-pin strips for power and control logic.
It can be controlled with PWM inputs or logic level. With a logic voltage range between 3.3 V and 5 V, it is compatible with a wide range of controllers such as Arduino, Raspberry Pi, and PLCs.
Particularly suitable for use in robotic platforms, pump control, electric fans, conveyor belts, and more.
Warning! The power input does not have reverse polarity protection.
Technical specifications
Documentation and useful links
Technical details
| Motors | 6 to 27 VDC |
|---|---|
| Control logic | 3.3-5 VDC (Arduino, Raspberry Pi, PLC, etc.) |
| Motor current | max. 43 A |
| Control mode | PWM or level |
| Bidirectional control | Yes |
| PWM frequency | up to 25 kHz |
| Protections | overvoltage, insufficient supply |
| Dimensions (mm) | 50x50x43 |
| Weight | 66 grams |
