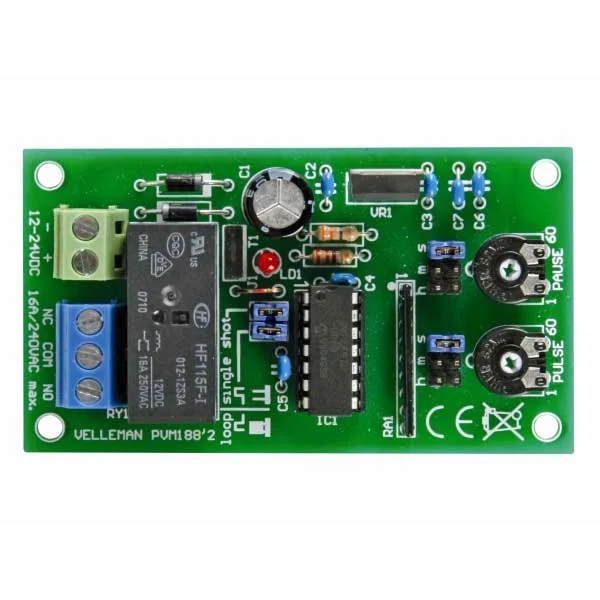

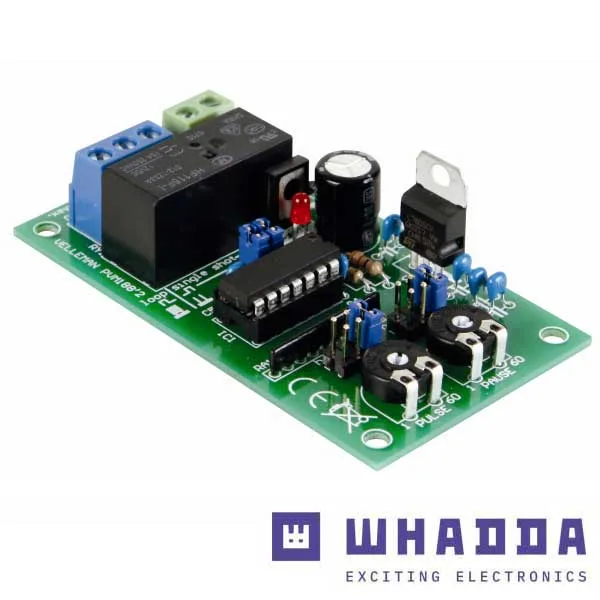

Timer from 1 second to 60 hours

Description

Universal timer with a wide timing range (from 1 second to 60 hours). Simple time setting via trimmer and jumper (hours, minutes, seconds). Relay closure time adjustment: from 1 second to 60 hours, pause time adjustment: from 1 second to 60 hours, power supply between 12 and 24 Vdc / 100 mA, relay output with maximum contact rating of 16 A / 230 Vac.

Features

• Simple time setting via trimmer and jumper (hours, minutes, seconds)
• Pulse/pause start
• Applications:
• Flashing lights
• Automatic irrigation
• Charge time control for batteries
• Cyclic operation for electronic equipment, etc.
• Automatic activation of flush valves and ventilation in bathrooms

Connections

Documentation and useful links

• Assembly instructions
• Manual
