FTDI USB-to-Serial Converter Cable 5V

Built around the FTDI FT232RQ chip (housed inside the USB connector), this cable is a simple way to connect TTL-interface devices to a USB port

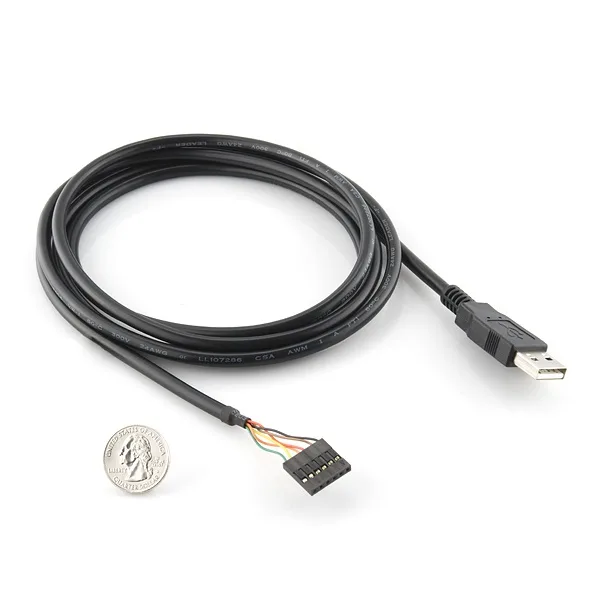

FTDI USB-to-Serial Converter Cable 5V - Image 1
FTDI USB-to-Serial Converter Cable 5V - Image 3
FTDI USB-to-Serial Converter Cable 5V - Image 4

SKU 6168-FTDICABLE5VEAN 8219671064279Item type: Assembled

Description

Based on the FTDI FT232RQ chip (located in the USB connector), this cable allows simple connection of devices with a TTL interface to a USB port. The I/O pins are configured to operate at 5V. One end of the cable terminates in a 6-pin, 2.54 mm pitch connector with the following configuration: RTS, RX, TX, 5V, CTS, GND (RTS is the green wire and GND is black).

Documentation and useful links
