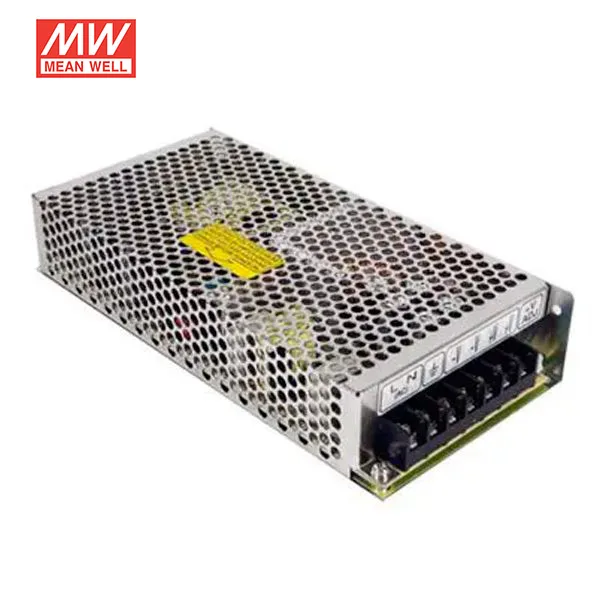

Switching power supply 5V – 130W
Bench power supply using switching technology: high efficiency, long life and high reliability
SKU 8220-RS-150-5EAN 5410329600457Output voltage: 5 VdcBench power supplies
Description
|
Bench power supply using switching technology: high efficiency, long life and high reliability. Metal case, convection air cooling, input voltage: 100 to 240 Vac, output voltage 5 volt, current 26 A, power 130 W. It has a power-on LED and protection against short circuit, overload and overvoltage. Switching technology makes the unit far lighter and gives it very high energy efficiency. |
|
Technical specifications
|
|
Technical details
| Input voltage | 100-120 VAC 3 A / 200-240 VAC 2 A, 50/60 Hz |
|---|---|
| Inrush current | 40 A / 230 Vac (cold start) |
| Leakage current | <2 mA / 240 Vac |
| Output voltage | 5 Vdc |
| Output voltage range | 4.75 to 5.5 V (adjustable) |
| Output current | 26 A |
| Current range | 0 to 26 A |
| Ripple and noise (max) | 80 mVp-p |
| Output power | 130 W |
| Efficiency | 78% |
| Connection | 7-way terminal block |
| overload | 110-150% of rated output power |
| overvoltage | 5.75 - 6.75 V |
| Dimensions (mm) | 199 (length) x 98 (width) x 38 (height) |
