Stepper Motor Control Board with DRV8825 and ATmega32U4

Control board for stepper motors with a DRV8825 driver and an ATmega32U4 microcontroller for open-loop control of stepper motors, programmable with the Arduino IDE.

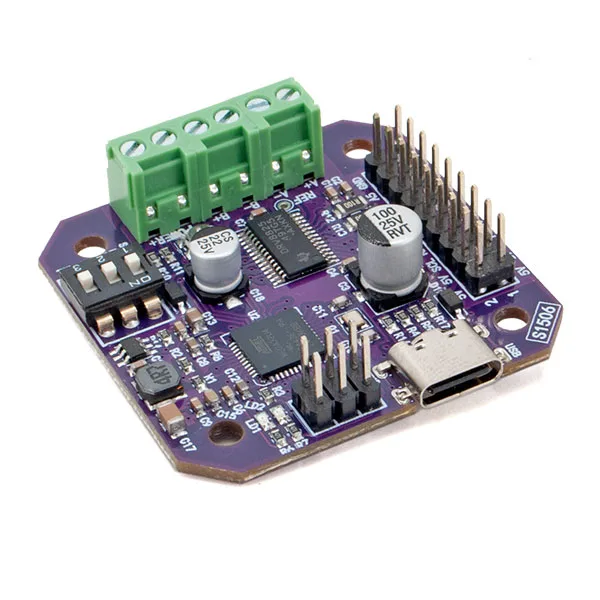

Stepper Motor Control Board with DRV8825 and ATmega32U4 - Image 1

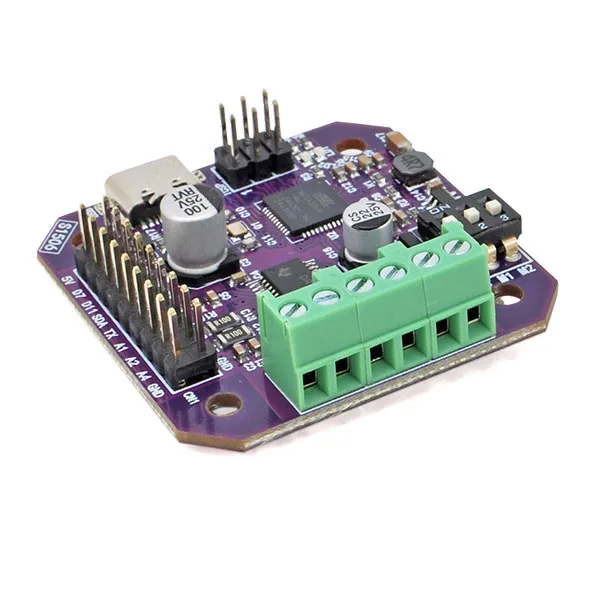

Stepper Motor Control Board with DRV8825 and ATmega32U4 - Image 3

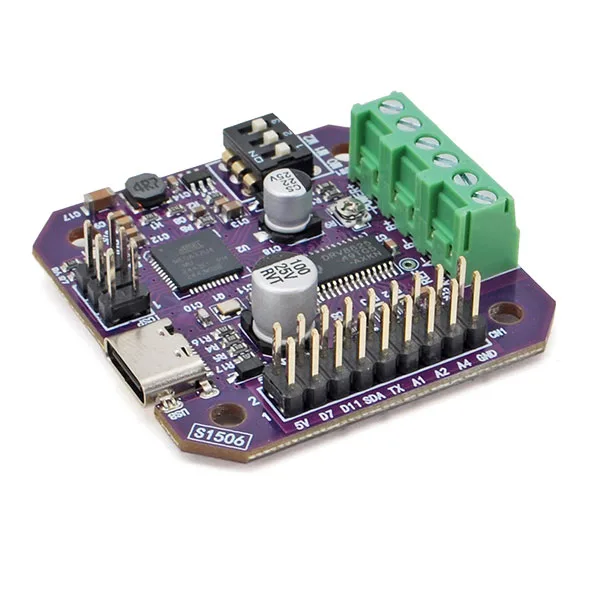

Stepper Motor Control Board with DRV8825 and ATmega32U4 - Image 4

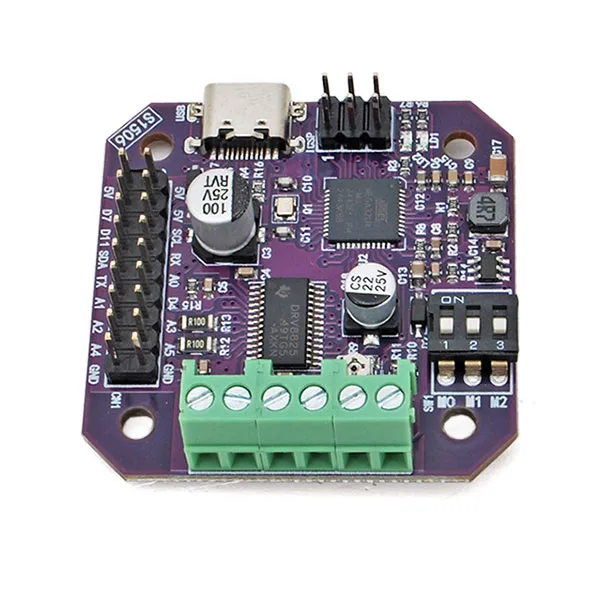

Stepper Motor Control Board with DRV8825 and ATmega32U4 - Image 5

SKU 7100-FT1506MEAN 8219671116183Item type: Assembled,

Description

This control board for stepper motors with a DRV8825 driver is the ideal way to drive NEMA17 motors in open-loop configuration. Built on a 4-layer printed circuit board, it carries both the DRV8825 driver and an ATmega32U4 microcontroller with the Arduino Leonardo bootloader, programmable straight over USB with no need for external converters.

Designed to be fitted directly on the back of the motor, the board is a plug-and-play answer for robotics, CNC, DIY automation and 3D printing projects. Microstepping down to 1/32 of a step, set with three DIP switches (M0, M1, M2), gives precise and flexible control of the motor.

The ATmega32U4 microcontroller can be programmed with the Arduino IDE, so it is ready to use even for hobbyists and beginners. Thanks to the Leonardo bootloader, programming is done straight over USB, just as on an ordinary Arduino board.

Compact, versatile and simple to use, this board is the ideal choice for anyone looking for an integrated, ready-to-use solution for stepper motor control.

Important note: The board is ready to use, with the Leonardo bootloader already loaded on the ATmega32U4.
Main features
  • No complicated wiring: microcontroller and driver in a single module.
  • Direct programming over USB, like an Arduino Leonardo.
  • Suited to tight spaces thanks to its compact format.
  • Open-loop configuration, ideal for applications where feedback is not needed.
Technical specifications
  • Programming: over USB, no external converter needed
  • Direct mounting: holes aligned for fixing on the back of the motor
DIP switch settings for microstepping
Microstep M2 M1 M0
Full step OFF OFF OFF
1/2 step OFF OFF ON
1/4 step OFF ON OFF
1/8 step OFF ON ON
1/16 step ON OFF OFF
1/32 step ON OFF ON
1/32 step ON ON OFF
1/32 step ON ON ON

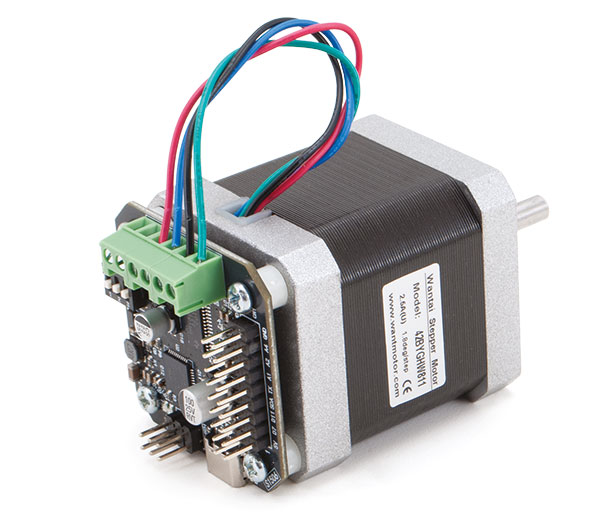

The control board fitted directly on the NEMA17 motor

Stepper motor control board with DRV8825 and ATmega32U4 microcontroller
The picture shows an example of the control board in use. The motor is not included and must be bought separately.

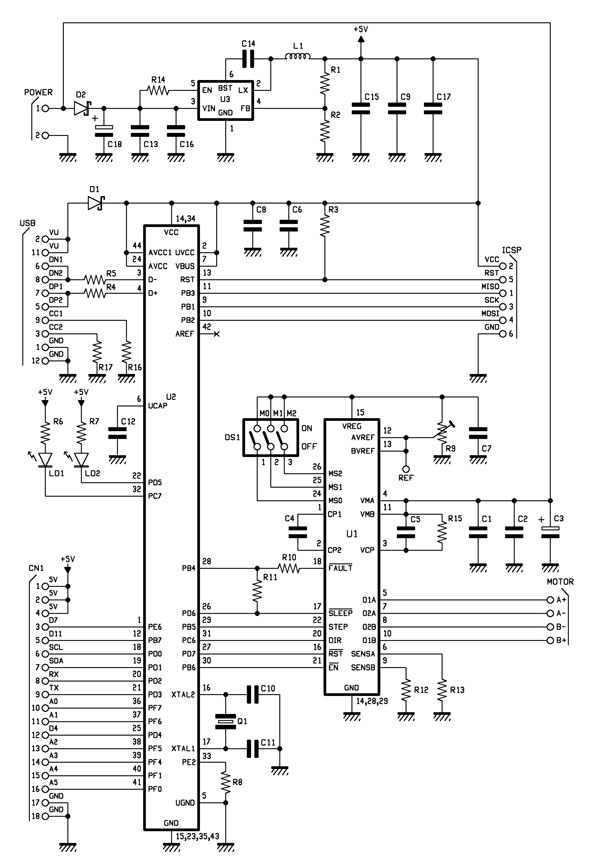

Circuit diagram

Stepper motor control board with DRV8825 and ATmega32U4 microcontroller

Technical details

Motor driver DRV8825 (Texas Instruments)
Microcontroller ATmega32U4 with Arduino Leonardo bootloader
Motor supply up to 45 V – max 2.2 A per phase (with cooling)
Logic voltage 5 V (over USB)
Microstepping resolution full step, 1/2, 1/4, 1/8, 1/16, 1/32 (selectable with the DIP switches)
On-board DIP switches M0, M1, M2 for setting the microstepping
Built-in USB connection yes (USB-C)
IDE compatibility Arduino IDE
Compact size suitable for mounting directly on NEMA17 motors
Type of control open-loop
Applications CNC, robotics, DIY automation, 3D printing, educational projects
