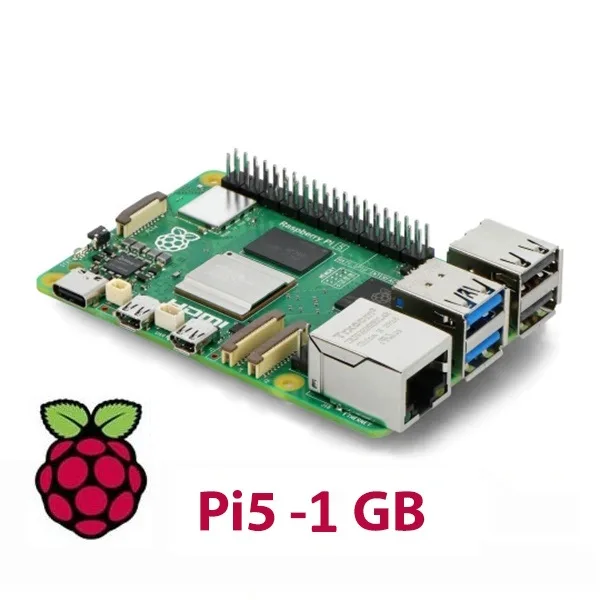

Raspberry Pi 5 – 1 GB memory version

The Raspberry Pi 5 has a dual 4Kp60 HDMI video output with HDR support, so two high-resolution screens can be connected for multitasking projects or immersive gaming. The board also has a 4Kp60 HEVC decoder for playing high-definition video.

With 1 GB of LPDDR4X-4267 SDRAM, the Raspberry Pi 5 has plenty of memory to handle complex applications and effortless multitasking. Networking is covered by dual-band 802.11ac Wi-Fi and Bluetooth 5.0/Bluetooth Low Energy (BLE), for reliable wireless connections.

The Raspberry Pi 5 also has a generous set of USB ports: two high-performance USB 3.0 ports and two USB 2.0 ports. Gigabit Ethernet with PoE+ support (a separate PoE+ adapter is required) rounds off the networking options.

• Processor:
  • Broadcom BCM2712
  • 64-bit ARM Cortex-A76 (ISA ARMv8-A)
  • Quad-core
  • 16 nm SoC
  • Clock frequency @ 2.4GHz
  • 64KB I and D caches
  • 512KB per-core L2 cache and 2MB shared L3 cache
  • Metal body for better heat dissipation
• SDRAM:
  • 1GB LPDDR4X-4267
• Ports:
  • 2 USB 3.0 ports with simultaneous 5 Gbps capability
  • 2 USB2.0 ports
• VideoCore:
  • VideoCore VII GPU, clocked at 800MHz, with support for OpenGL ES 3.1 and Vulkan 1.2
• Video ports:
  • Dual micro-HDMI port, 2x 4Kp60 with HDR support
  • 4Kp60 HEVC decoder
• Image/camera input:
  • 2 x 4-lane MIPI CSI/DSI ports, supporting:
    • 2 cameras
    • 2 displays
    • 1 camera + 1 display
• Storage:
  • MicroSD slot, with support for high-speed SDR104 mode
  • Optional interface via the PCIe socket, supporting high-speed devices such as NVMe SSDs
• Connectivity:
  • Gigabit Ethernet, with support for the PoE+ HAT (the new PoE+ HAT for Raspberry Pi 5 is required)
  • Bluetooth 5.0 and BLE (Bluetooth Low Energy)
• Other features:
  • PCIe 2.0 x 1 interface for high-speed peripherals such as NVMe SSDs (a compatible HAT is required)
  • Dedicated UART port for debugging, separate from the 40 GPIO pins and always enabled
  • Dedicated cooling fan port, ready for PWM (pulse width modulation) and speed feedback, separate from the 40 GPIO pins
  • Expanded 40-pin GPIO header
  • Low-level peripherals:
    • 27 x GPIO
    • UART
    • I2C bus
    • SPI bus with two chip selects
    • +3.3V
    • +5V
    • Ground
  • RTC built into the PMIC (Power Management IC), with a connector for a rechargeable lithium battery
  • On/off button (for clean shutdown, reset or wake-up)
  • Works only with the latest version of Raspberry Pi OS Bookworm

1. Raspberry Pi version / on-board memory
2. Broadcom BCM2712 processor
3. PCI Express 2.0 interface
4. On/off button
5. Power management system
6. Mounting holes for the heatsink/active cooler
7. RTC battery connector
8. UART connector
9. Raspberry Pi RP1 I/O controller
10. Fan connector
11. Ethernet and USB ports (swapped over compared with the Raspberry Pi 4)
12. PoE HAT connector
13. 4-lane MIPI DSI/CSI connectors x2
