Arduino Uno R4 MINIMA with Renesas RA4M1

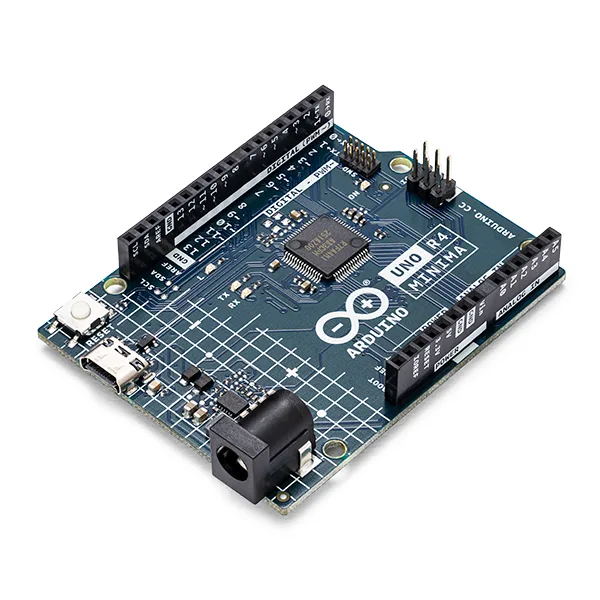

Arduino Uno R4 MINIMA with Renesas RA4M1 - Image 1

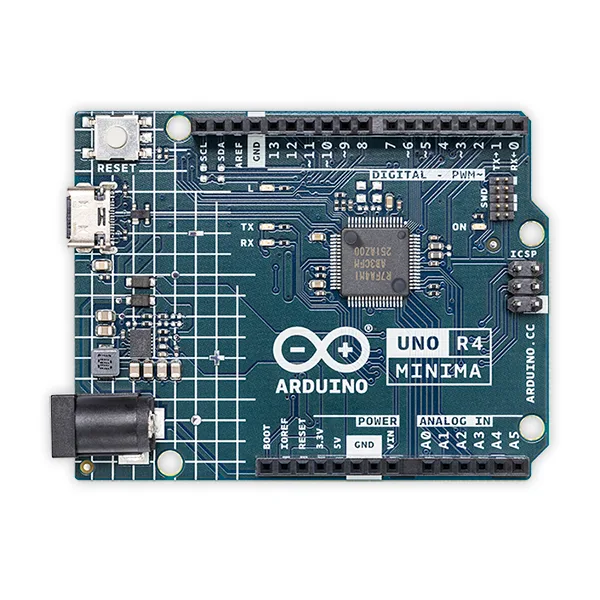

Arduino Uno R4 MINIMA with Renesas RA4M1 - Image 3

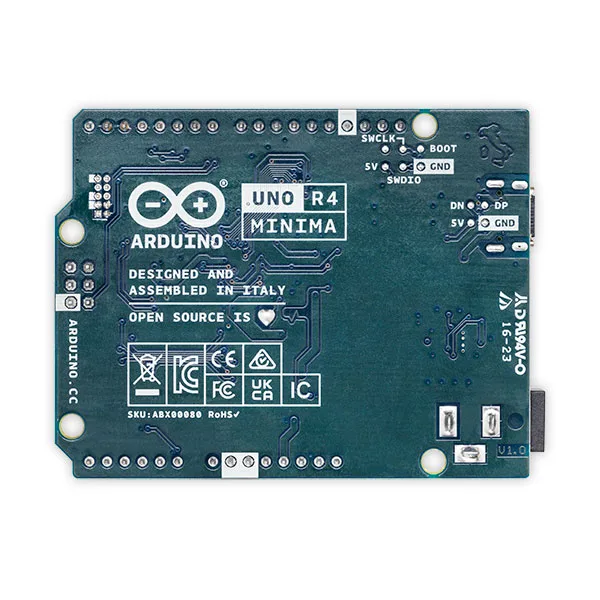

Arduino Uno R4 MINIMA with Renesas RA4M1 - Image 4

SKU 7300-ARDUINOUNOR4EAN 8058333490090Item type: Assembled, Board

Description

Arduino UNO R4 MINIMA is a powerful, versatile board that opens up endless possibilities in electronic design. With the Renesas RA4M1 microprocessor, this board offers high processing power, expanded memory and new on-board peripherals. You can build complex, innovative projects while making the most of its compatibility with R3 shields and accessories, with no change to the form factor or the operating voltage.
Meet Arduino UNO R4 MINIMA: a powerful and versatile board! With the Renesas RA4M1 microprocessor, this board offers high processing power, expanded memory and new peripherals.

Arduino UNO R4 MINIMA is fully compatible with R3 shields and accessories, with no modifications required. It also runs at a standard 5 volt supply, which keeps it simple to use.

Explore advanced design with Arduino UNO R4 MINIMA and its Renesas 32 bit microcontroller. Thanks to its processing power and expanded memory, you can build complex and innovative projects.

Make the most of your existing shields and accessories, with no change to the form factor or the operating voltage.
Here is what Arduino UNO R4 MINIMA gives you
  • Hardware compatibility with the UNO form factor: Arduino UNO R4 MINIMA keeps the same form factor, pin layout and 5 V supply voltage as its predecessor, the UNO R3. That means a seamless transition for existing shields and projects, making the most of the broad and unique ecosystem already built around the Arduino UNO.
  • Expanded memory and a faster clock: get ready for more accurate calculations and the ability to handle complex projects with ease. The UNO R4 MINIMA offers increased memory and a faster clock speed, letting you take on demanding tasks effortlessly.
  • Additional on-board peripherals: Arduino UNO R4 MINIMA introduces a set of built-in peripherals, including a 12 bit DAC, a CAN BUS connection and an operational amplifier. These extra components give you expandable capabilities and greater flexibility in your designs.
  • Extended tolerance to 24 V: Arduino UNO R4 MINIMA now supports a wide range of input voltages, accepting supplies up to 24 V. That allows seamless integration with motors, LED strips and other actuators, simplifying your projects by using a single power source.
  • SWD connector: debugging is a critical part of any project. Simply connect an external debugger to the UNO R4 Minima and monitor the inner workings of your system with ease. Stay in control and gain valuable insight.
  • HID support: Arduino UNO R4 MINIMA has built-in HID (Human Interface Device) support, so it can act as a mouse or a keyboard when connected to a computer over a USB cable. This handy feature makes it easy to send keystrokes and mouse movements to a computer, improving usability and functionality.
Technical specifications
  • UART: 1
  • Dimensions:
    – width: 68.85 mm
    – length: 53.34 mm
Documentation and useful links

Technical details

Microcontroller Renesas RA4M1 (Arm® Cortex®-M4 with Floating Point Unit)
Operating voltage 5V
Input voltage 6-24V
Memory 256 kB Flash, 32 kB RAM
DC current per I/O pin 8mA
Clock speed 48 MHz
Programming port USB-C
Digital pins 14
PWM 6
ADC 6
DAC 1 (12 bit)
SPI 1
I2C 1
CAN 1
