STEM – Smart Home Arduino: Educational Kit with Illustrated Guide and Programming Examples

Arduino-based Smart Home kit, complete with sensors, actuators and a Bluetooth module for remote control. Ideal for STEM projects, IoT prototyping and technical training.
Supplied with an illustrated guide in Italian and programming examples.

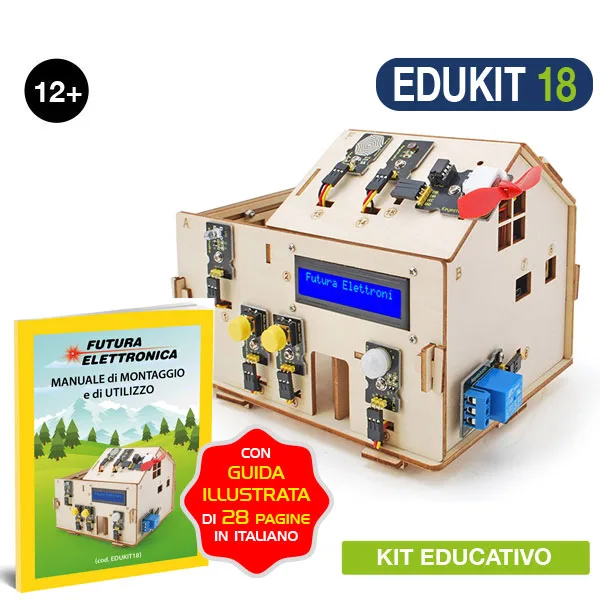

STEM - Smart Home Arduino: Educational Kit with Illustrated Guide and Programming Examples - Image 1

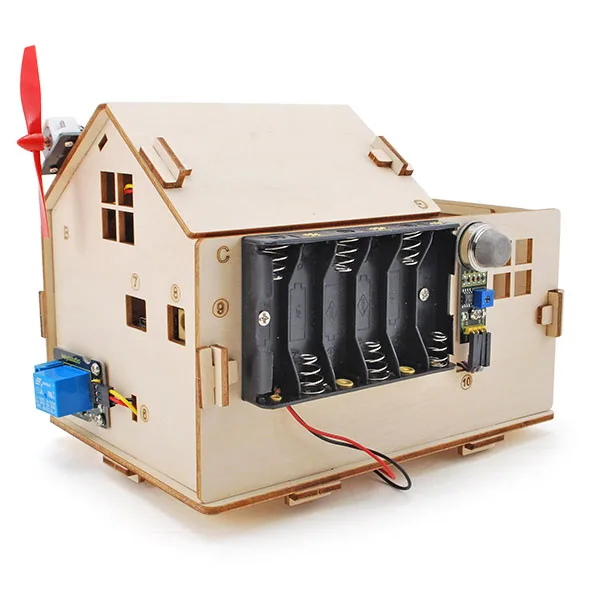

STEM - Smart Home Arduino: Educational Kit with Illustrated Guide and Programming Examples - Image 3

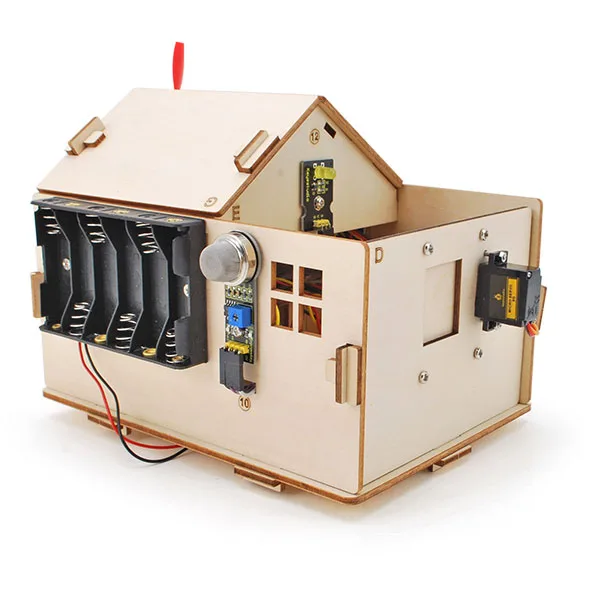

STEM - Smart Home Arduino: Educational Kit with Illustrated Guide and Programming Examples - Image 4

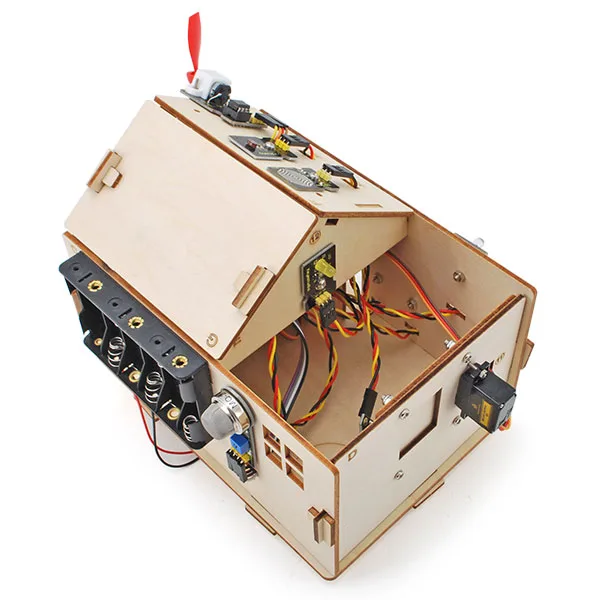

STEM - Smart Home Arduino: Educational Kit with Illustrated Guide and Programming Examples - Image 5

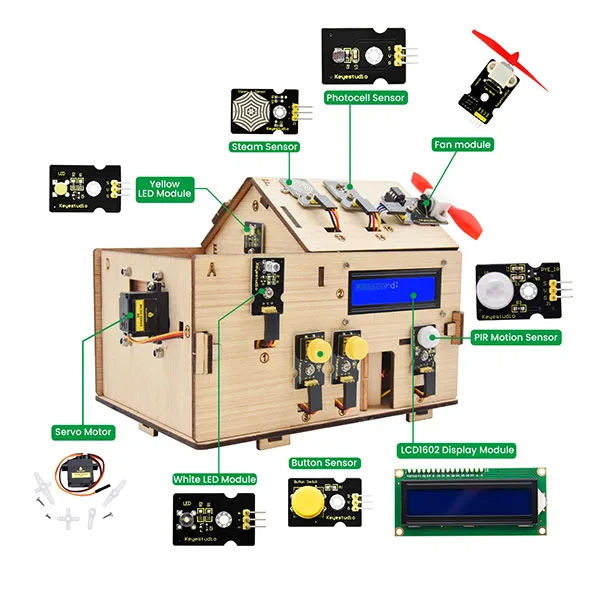

STEM - Smart Home Arduino: Educational Kit with Illustrated Guide and Programming Examples - Image 6

SKU 7100-EDUKIT18EAN 8058333490090Material: WoodItem type: Kit,

Description

Smart Home is a kit for prototyping and simulating a home automation system built on the Arduino platform. Designed to reproduce what a real smart home does, it brings together a wide range of sensors and actuators for building automated scenarios.

The kit gives intelligent control of LED lighting, motorised blinds, access control through an electronic lock, motion detection, temperature and humidity, with the option of switching devices such as buzzers or fans. All the modules are programmed in the Arduino IDE environment, with code in C/C++, and allow complex automation logic to be built.

The system can be controlled either locally with the infrared remote control, or remotely from mobile devices, reproducing real smart-living scenarios.

Also included is a battery holder for 6 AA cells, which lets the system run on its own with no need for an external source, making the kit ideal for mobile demonstrations and teaching environments.
Alternatively, the kit can be powered from an external power supply between 6 and 12 Volts, for flexibility in different working situations.

Designed for STEM laboratories, technical schools, vocational training courses and makers, the kit is a practical platform for learning the technologies behind home automation and the Internet of Things (IoT).
Main features
  • Teaching aim: simulating and developing home automation (smart home)
  • Actuators included: LEDs, buzzer, DC fan, relay, servomotors
  • Expansion shield: sensor shield for quick, tidy connections
  • Programming: C/C++ in the Arduino IDE environment
  • Applications: smart lighting, environmental monitoring, window/blind automation, security and access simulation
  • Intended use: technical training, school laboratories, STEM courses, IoT experiments

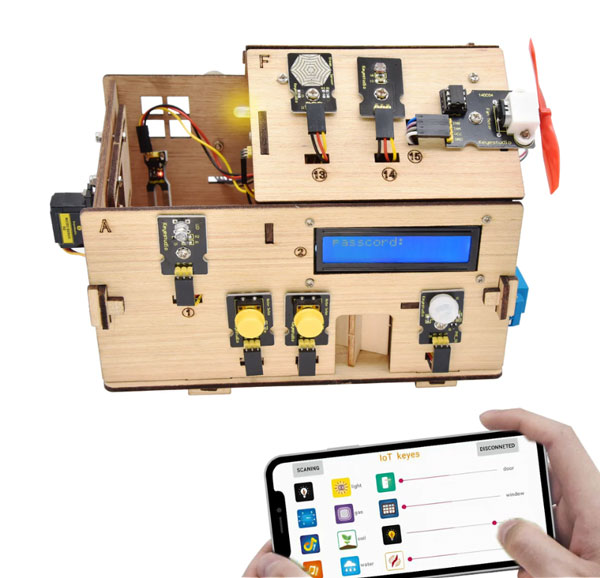

Can be controlled from Android and iOS smartphones
Educational Smart Home kit based on Arduino

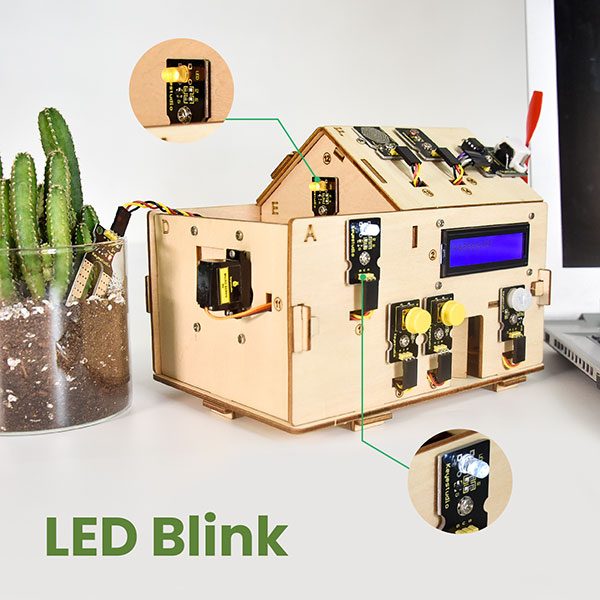

Intelligent control of LED lighting
Educational Smart Home kit based on Arduino

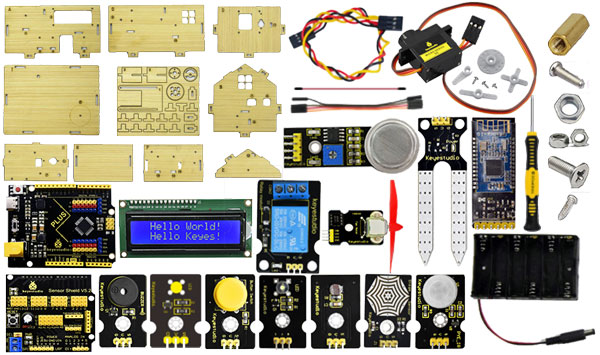

What is in the box
Opening the box you find ten balsa panels (the classic modelling material) holding all the parts needed to build the structure, already cut, which come away with light pressure on the pieces themselves; the mechanical side is completed by screws and nuts in various sizes, spacers, a plastic propeller, jumper leads for the connections, and a small cross-head screwdriver, which is essential for assembly.
  • The electronics consist of:
    • Keyestudio ks0486 Plus board, fully compatible with Arduino UNO, with USB-C cable;
    • 16×2 LCD display with I2C interface;
    • ks0004 Sensor Shield;
    • HM-10 Bluetooth module;
    • Passive buzzer module;
    • Yellow LED module;
    • 2 x push-button module;
    • White LED module;
    • Photocell module;
    • Air humidity and vapour sensor module;
    • PIR module;
    • MQ-2 gas sensor module;
    • Soil moisture sensor module;
    • 5V relay module;
    • Fan module with DC motor;
    • 2 x servomotor;
    • 6 x AA battery holder (batteries are not included and must be bought separately)
The box of the Smart Home Arduino kit
Educational Smart Home kit based on Arduino
Download

Technical details

Board included Keyestudio ks0486 Plus, fully compatible with Arduino UNO
Remote control through an HM-10 Bluetooth module and mobile devices
Sensors included air temperature and humidity, MQ-2 gas, soil moisture, PIR (motion), photocell
Display 16x2 LCD with I2C interface for showing data and status
Power supply external 6–12V power supply or a 6×AA battery pack (holder included)
